Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open the liftgate window.
  2. Support the liftgate window.
    NOTE: Apply pressure only at the end of the hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

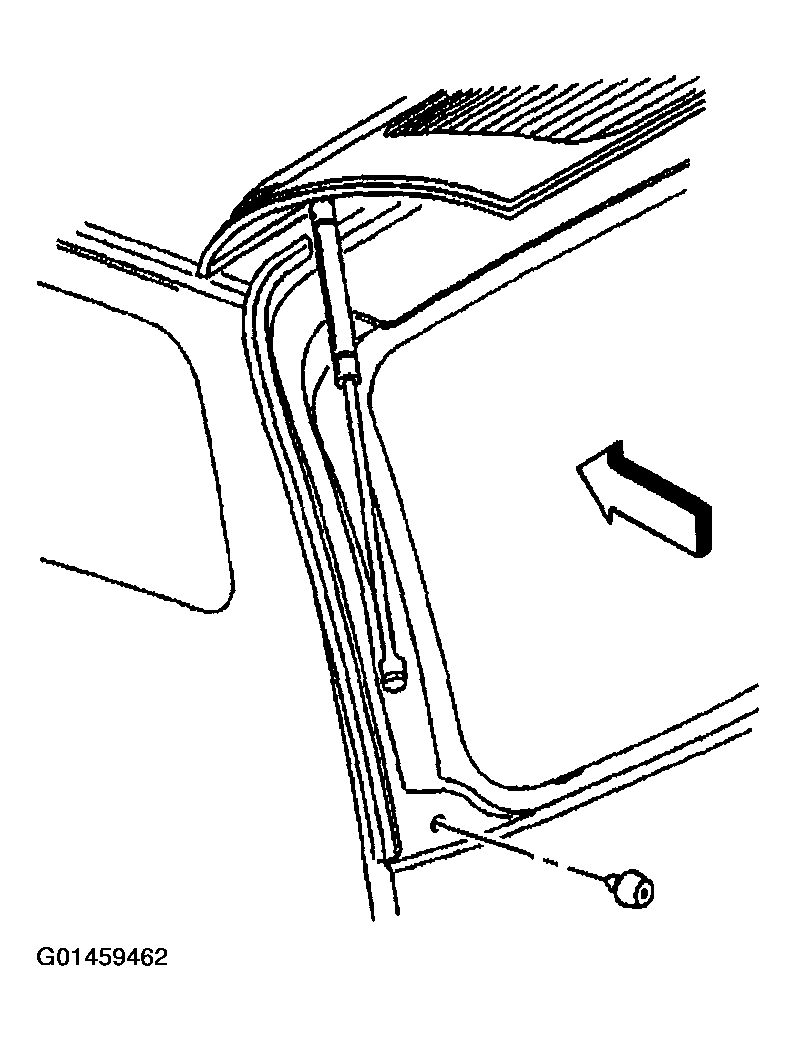

    3. Fig 1: Removing Strut - Lift Gate Window
    G01459462Courtesy of GENERAL MOTORS CORP.
  3. Gently pry up the retaining clip in order to remove the lower end of the liftgate window strut from the ball stud on the liftgate.
  4. Gently pry up the retaining clip in order to remove the lower end of the liftgate window strut from the ball stud on the window assembly.
