Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold down the rear seats.
  2. Remove the rear removable glass panel.
  3. Open the midgate to gain access to the striker
  4. Remove the striker bolts.
  5. Remove the striker from the vehicle.

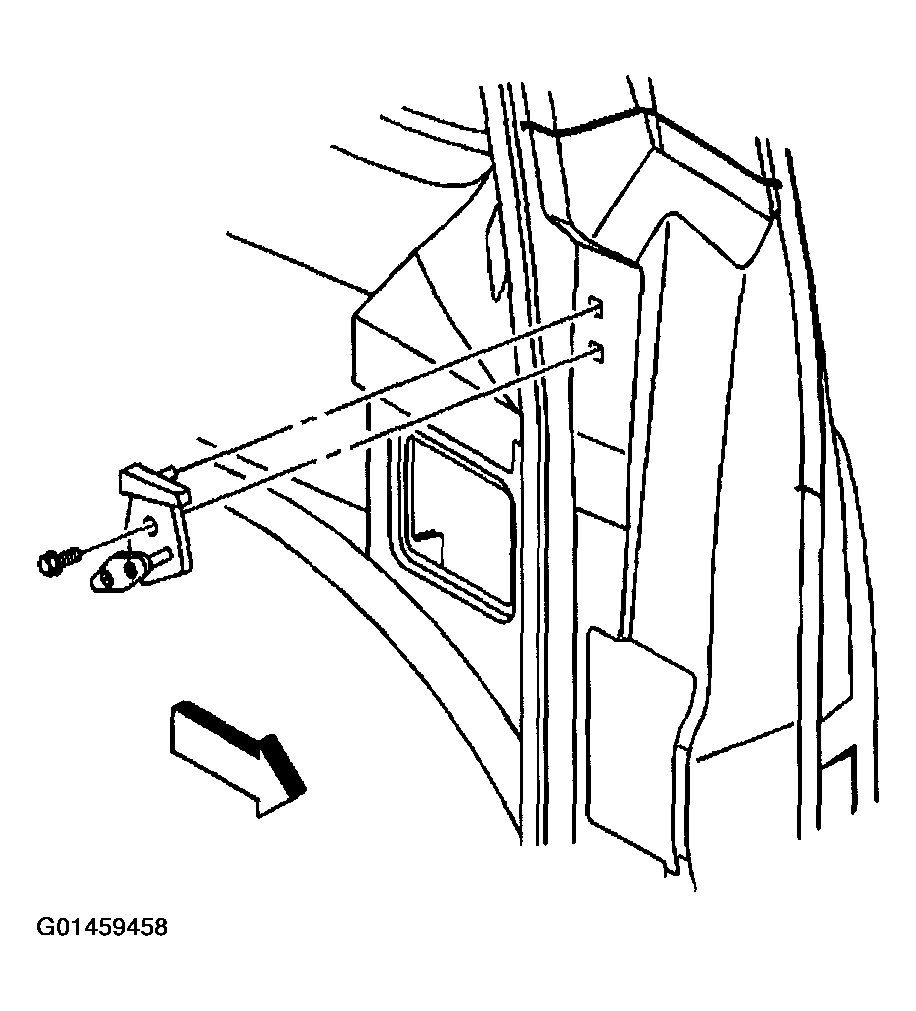

    6. Fig 1: Removing Striker Bolts
    G01459458Courtesy of GENERAL MOTORS CORP.
