Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the mid gate.
  2. Raise the close out panel on the load floor grate and support in the raised position.
    3. Fig 1: Identifying Mid Gate
    G01459388Courtesy of GENERAL MOTORS CORP.
  3. Using a flat bladed tool or suitable replacement to pry the front drain valve from the floor.
  4. Remove the valve from the vehicle.

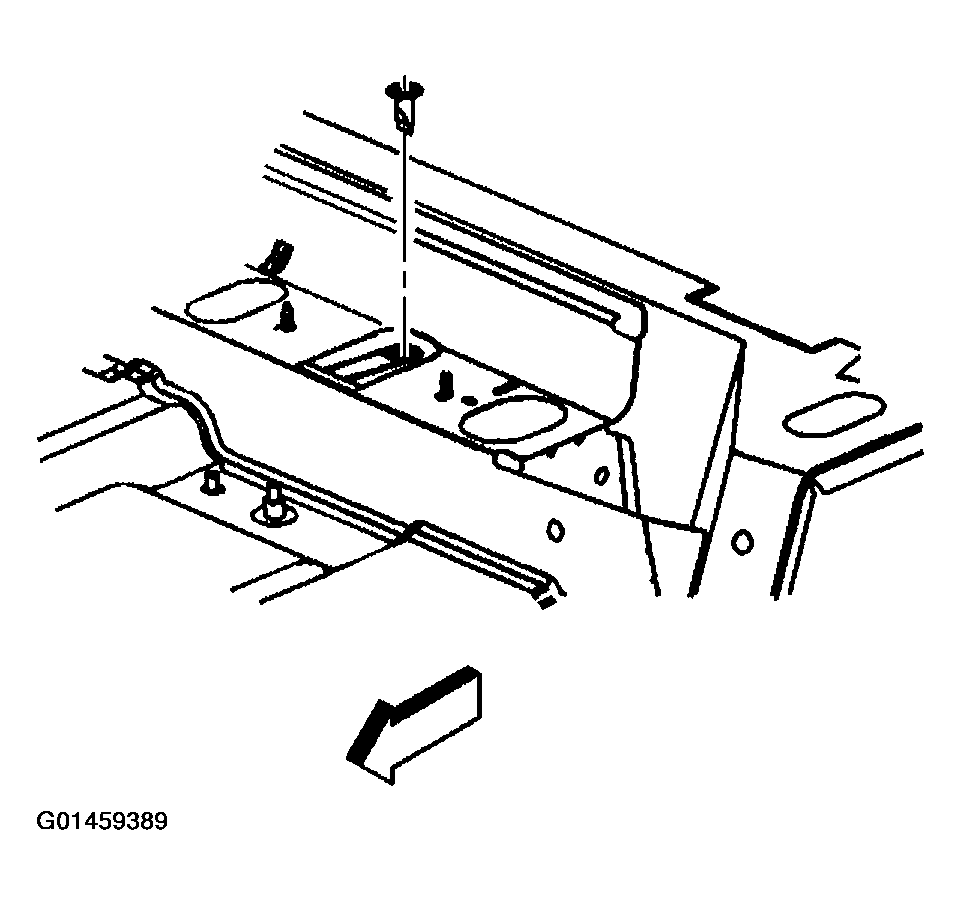

    5. Fig 2: Removing Valve From Vehicle
    G01459389Courtesy of GENERAL MOTORS CORP.
