Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mid gate drain valve into the floor.

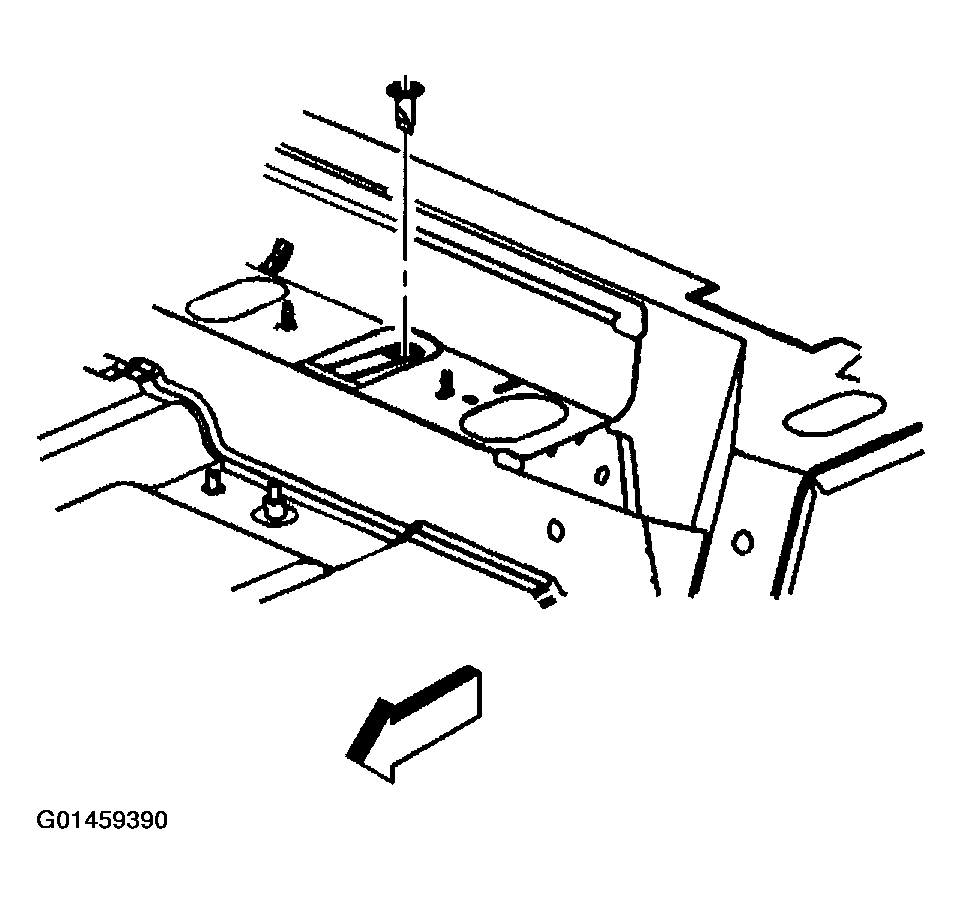

    2. Fig 1: Installing Mid Gate Drain Valve Into Floor
    G01459390Courtesy of GENERAL MOTORS CORP.
  2. Press down on the mid gate drain valve using firm pressure to firmly seat the valve into the floor.
  3. Lower the load floor grate close out panel.
  4. Close the mid gate.
