Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the end gate.
  2. Remove the compartment cover.
  3. Remove the load floor grate. Refer to GRATE REPLACEMENT - LOAD FLOOR WATER MANAGEMENT (AVALANCHE)  .
  4. Using a flat bladed tool or suitable replacement to pry the front drain valve from the floor.
  5. Remove the valve from the vehicle.

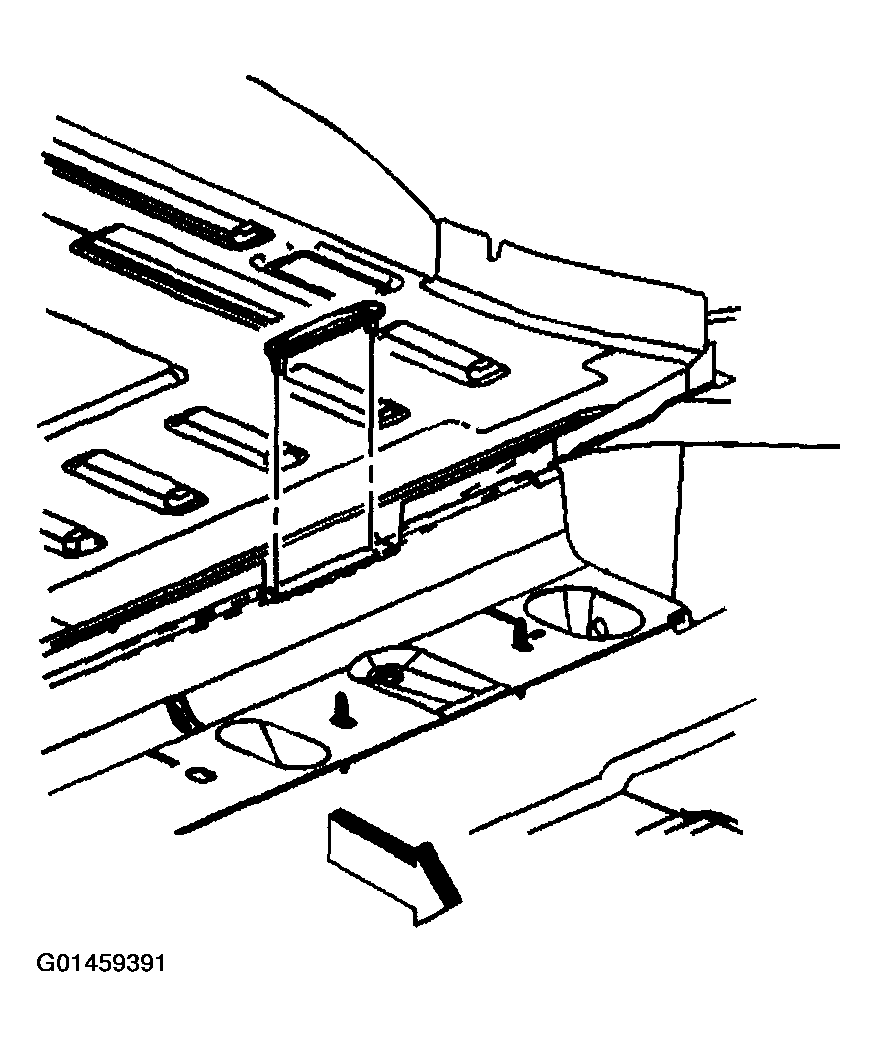

    6. Fig 1: Removing Rear Body Opening Frame Load Floor Grate Drain Valve
    G01459391Courtesy of GENERAL MOTORS CORP.
