Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front drain valve into the floor.

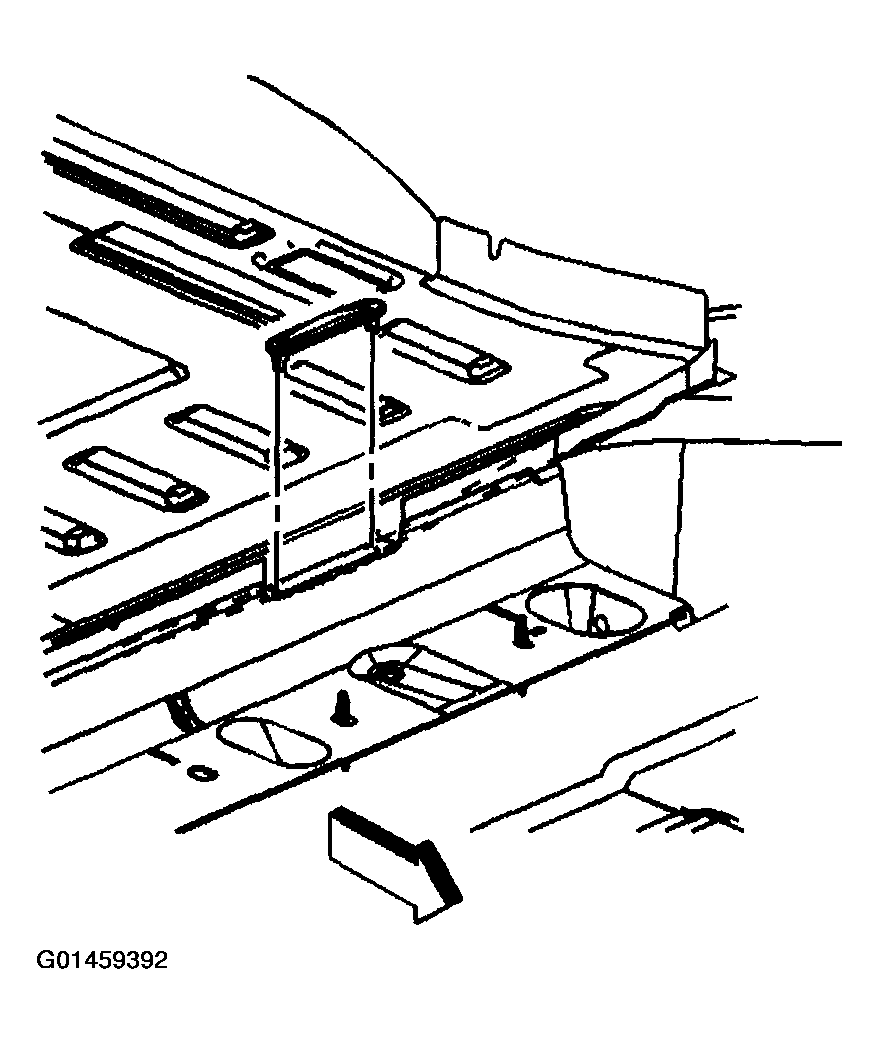

    2. Fig 1: Installing Rear Body Opening Frame Load Floor Grate Drain Valve
    G01459392Courtesy of GENERAL MOTORS CORP.
  2. Press down on the front drain valve using firm pressure to firmly seat the valve into the floor.
  3. Install the load floor grate. Refer to GRATE REPLACEMENT - LOAD FLOOR WATER MANAGEMENT (AVALANCHE)  .
  4. Install the compartment covers.
  5. Close the end gate.
