Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve.

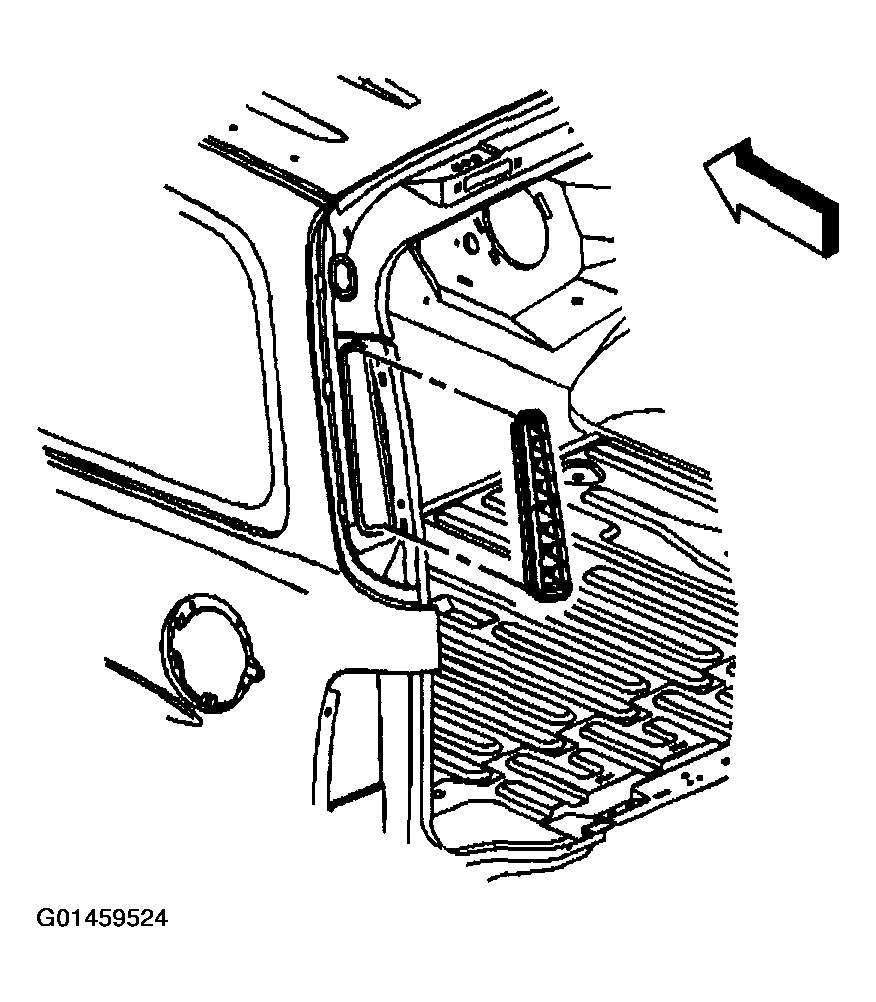

    2. Fig 1: Installing Pressure Relief Valve
    G01459524Courtesy of GENERAL MOTORS CORP.
  2. Press the pressure relief valve to fully seat.
  3. Install the upper rear garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
  4. Install the outer quarter panel upper applique.

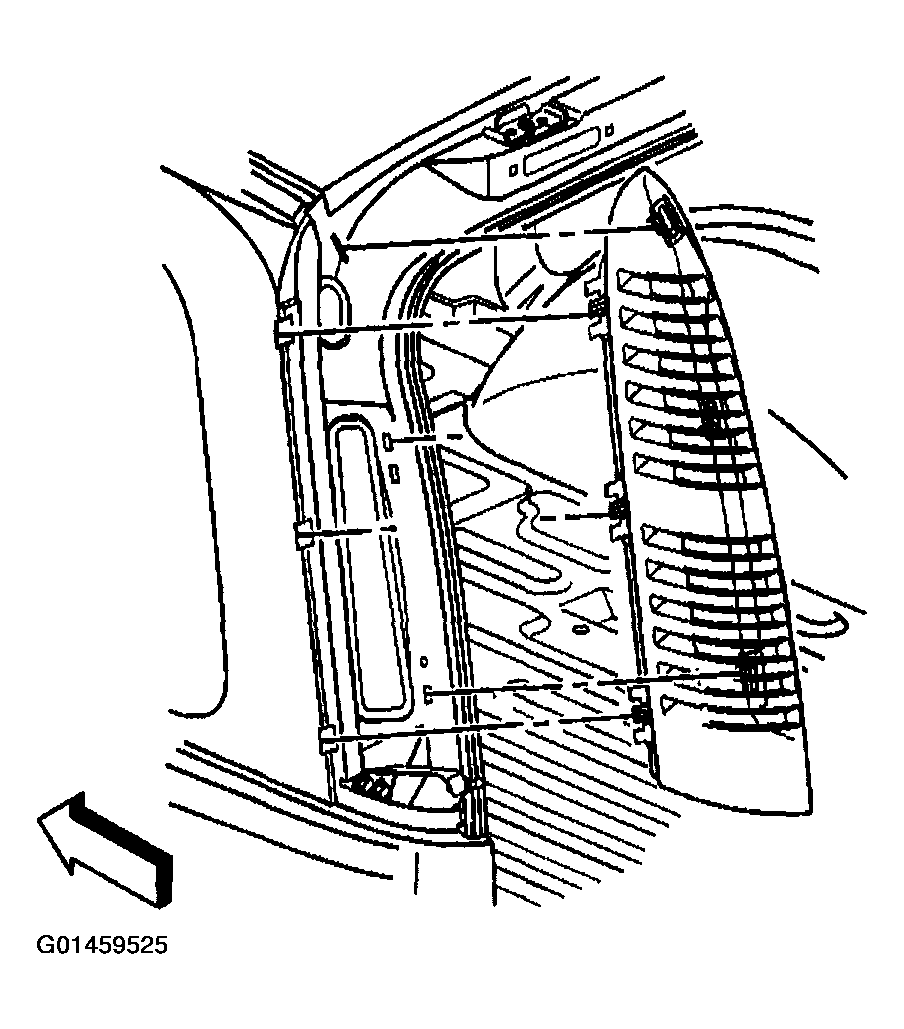

    5. Fig 2: Installing Outer Quarter Panel Upper Applique
    G01459525Courtesy of GENERAL MOTORS CORP.
  5. Close the lift gate.
