Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the rear seat back down.
  2. Remove the hinges. Refer to HINGE REPLACEMENT - REMOVABLE REAR PANEL - MID GATE  .
  3. Open the midgate while leaving the back glass in place.
  4. Remove the panel from the vehicle

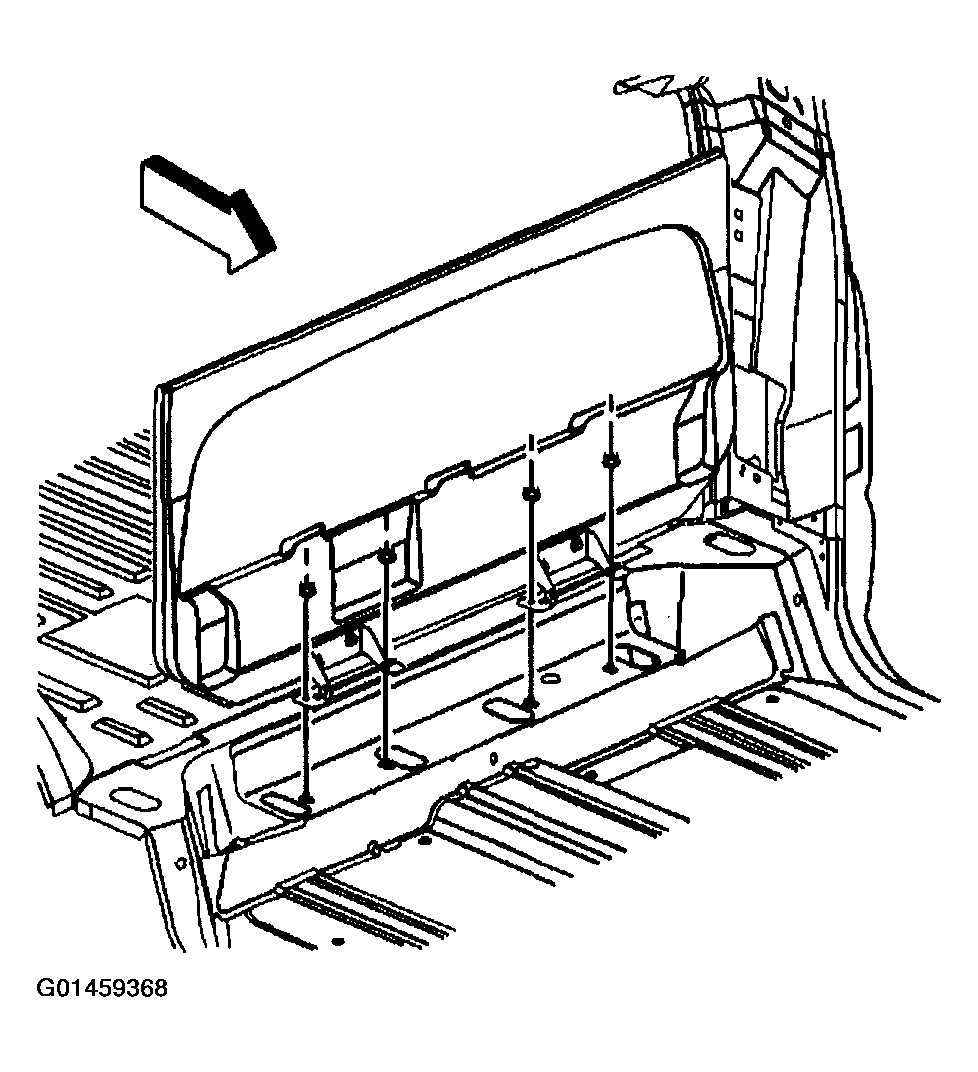

    Fig 1: Removing Rear Mid Gate Panel From Vehicle
    G01459368Courtesy of GENERAL MOTORS CORP.
