Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  2. Remove the liftgate window latch assembly. Refer to LATCH REPLACEMENT - LIFT GATE  .
  3. Depress the locking pin on the lock cylinder.
  4. Turn lock cylinder counterclockwise.
  5. Remove the liftgate lock cylinder from the latch assembly.

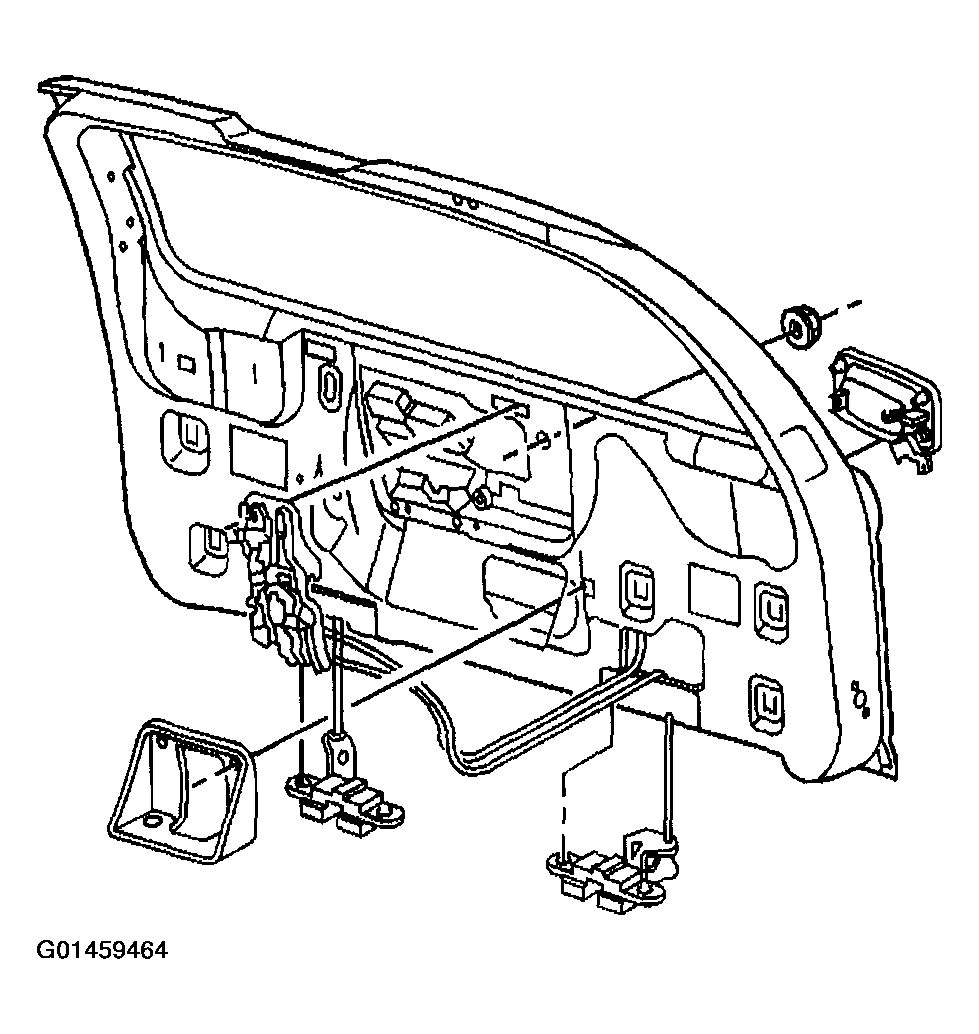

    6. Fig 1: Removing Lock Cylinder - Lift Gate
    G01459464Courtesy of GENERAL MOTORS CORP.
