Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate lock cylinder to the latch assembly.

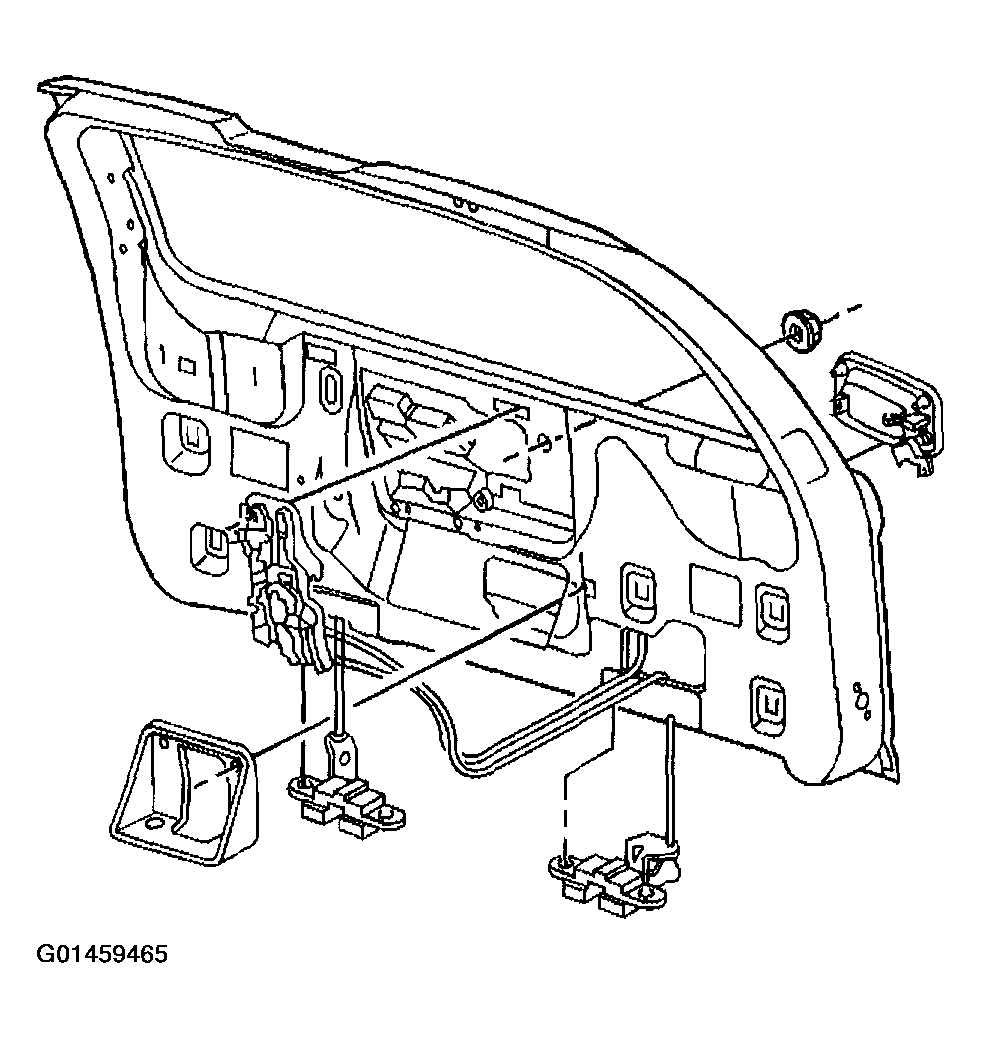

    2. Fig 1: Installing Lock Cylinder - Lift Gate
    G01459465Courtesy of GENERAL MOTORS CORP.
  2. Rotate lock cylinder clockwise until the pin engages.
  3. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  4. Install the liftgate window latch assembly. Refer to LATCH REPLACEMENT - LIFT GATE  .
