Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the cargo box stowage lid.
  2. Depress the spring-loaded locking tab.
  3. Turn the lock cylinder 1/4 turn clockwise.
  4. Remove the cargo lock cylinder assembly from the stowage lid.

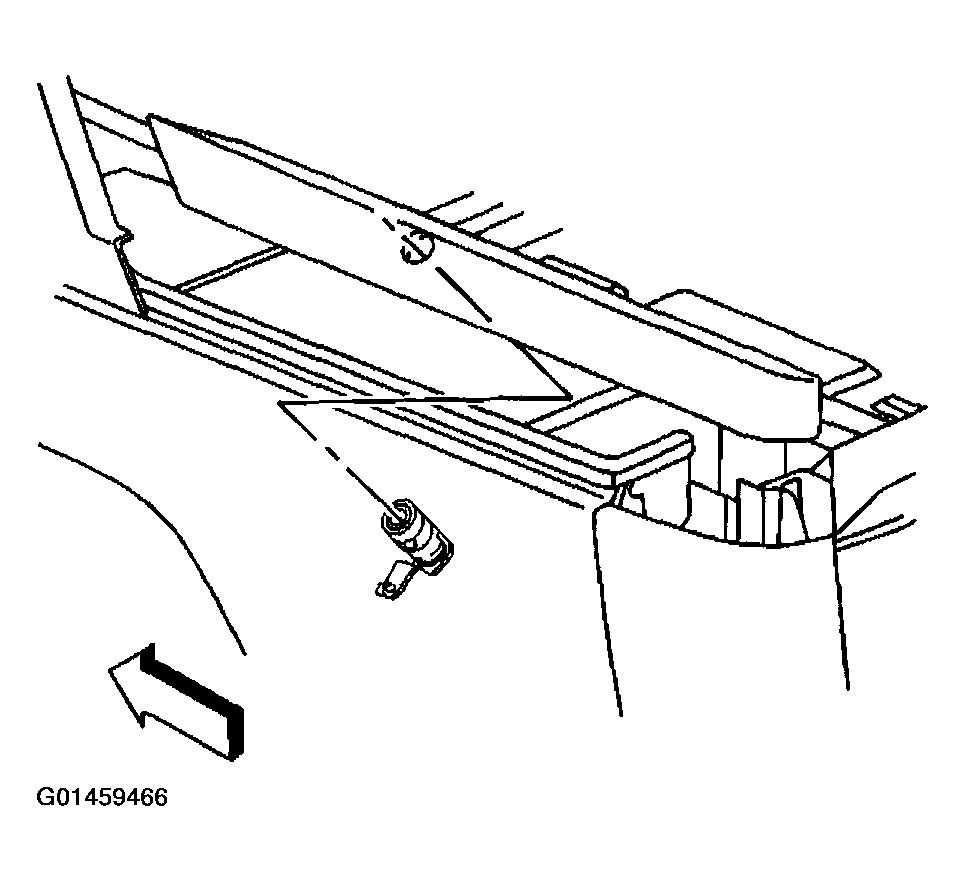

    5. Fig 1: Removing Cargo Lock Cylinder Assembly From Stowage Lid
    G01459466Courtesy of GENERAL MOTORS CORP.
