Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock cylinder assembly to the cargo box stowage lid.

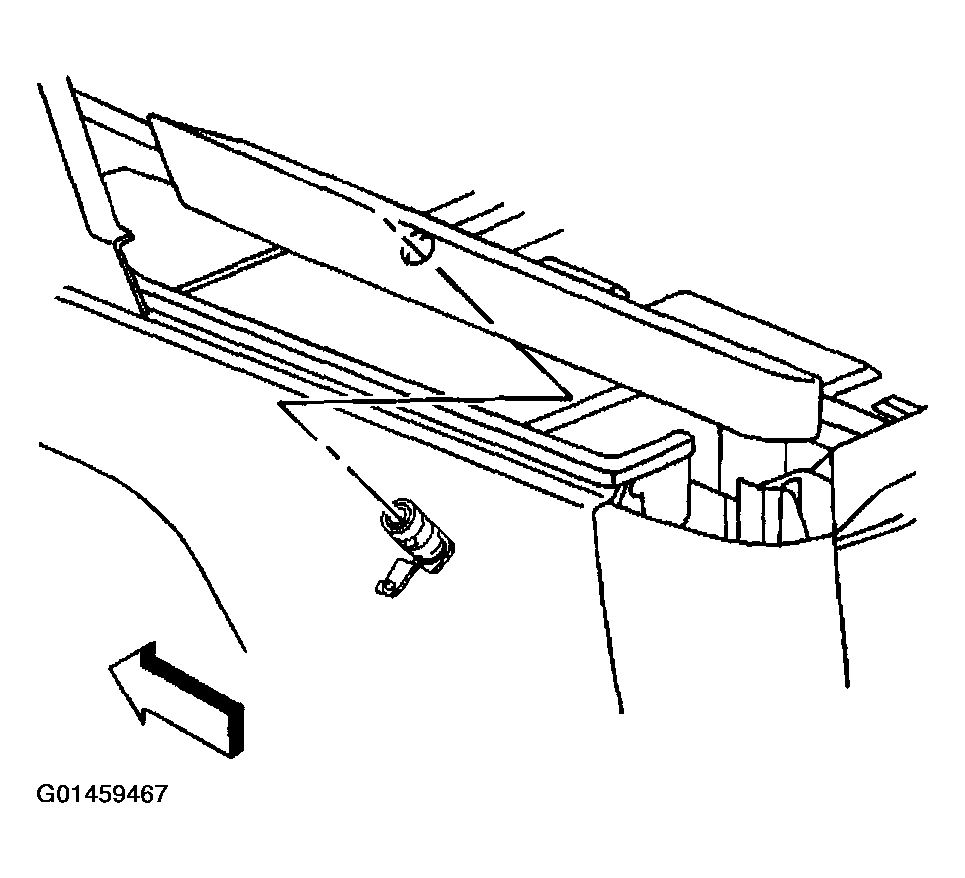

    2. Fig 1: Installing Lock Cylinder Assembly To Cargo Box Stowage Lid
    G01459467Courtesy of GENERAL MOTORS CORP.
  2. Turn the lock cylinder 1/4 turn counterclockwise in order to lock.
