Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cargo door trim panel, as necessary. Refer to TRIM PANEL REPLACEMENT - REAR DOOR  .
  2. Pull back the water deflector, as necessary. Refer to WATER DEFLECTOR REPLACEMENT  .
  3. Remove the actuator lock control rod.
  4. Disconnect the actuator wiring connector.
  5. Remove the handle actuating cable.
  6. Remove latch actuator cable.
  7. Remove the bolts that retain the actuator assembly to the door.

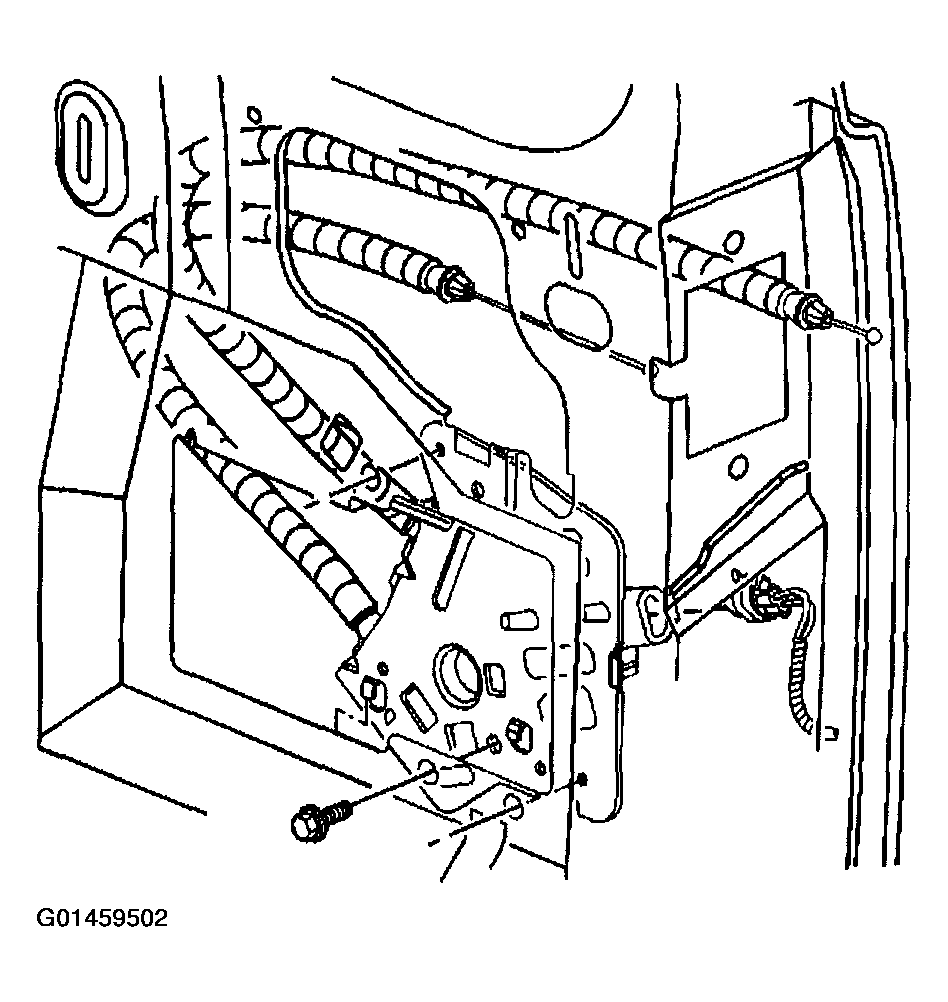

    8. Fig 1: Removing Bolts That Retain Actuator Assembly To Door
    G01459502Courtesy of GENERAL MOTORS CORP.
  8. Remove the actuator from the cargo door.
