Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the linkage rod to the endgate handle assembly.

Fig 1: Installing Linkage Rod To Endgate Handle Assembly
Courtesy of GENERAL MOTORS CORP.
Engage the linkage rod (1) to the latch assembly.
Install the endgate latch assembly. Refer to LATCH REPLACEMENT - END GATE .
Raise the endgate.

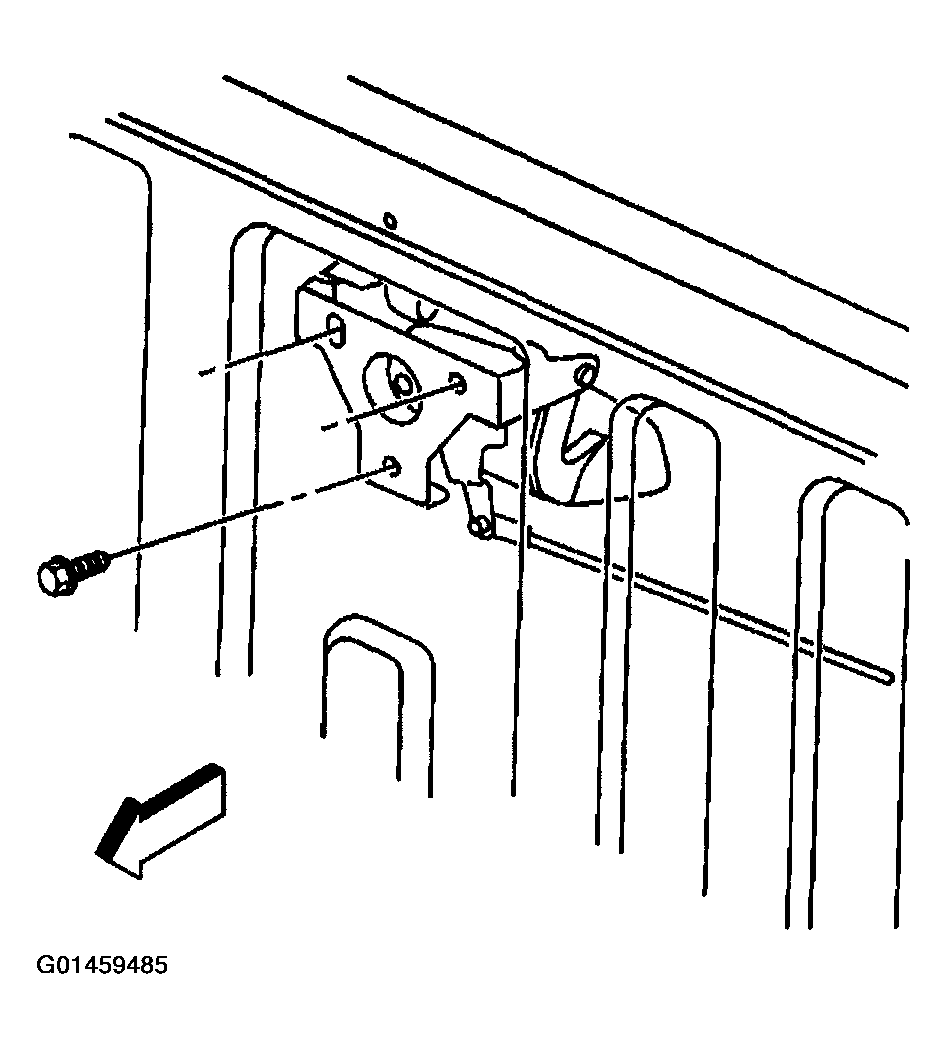

Fig 2: Engaging Linkage Rod To Latch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the endgate handle bezel. Pressing into place until fully seated.

Fig 3: Installing Endgate Handle Bezel
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Tighten the endgate handle bolts.
Tighten
1. Tighten the handle bolts to 25 N.m (18 lb ft).
