Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lift gate.
  2. Support the lift gate.
  3. Remove the roof rear header garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER (AVALANCHE/ESCALADE EXT) or GARNISH MOLDING REPLACEMENT - REAR UPPER (TAHOE/YUKON/ESCALADE/SUBURBAN) in Interior Trim.
  4. Disconnect the electrical connectors, as needed.
  5. Disconnect the lift gate window washer fluid hose.
  6. Remove the lift gate struts. Refer to STRUT REPLACEMENT - LIFT GATE  .
  7. Remove the bolts retaining the lift gate hinge to the body mounted hinge locator.

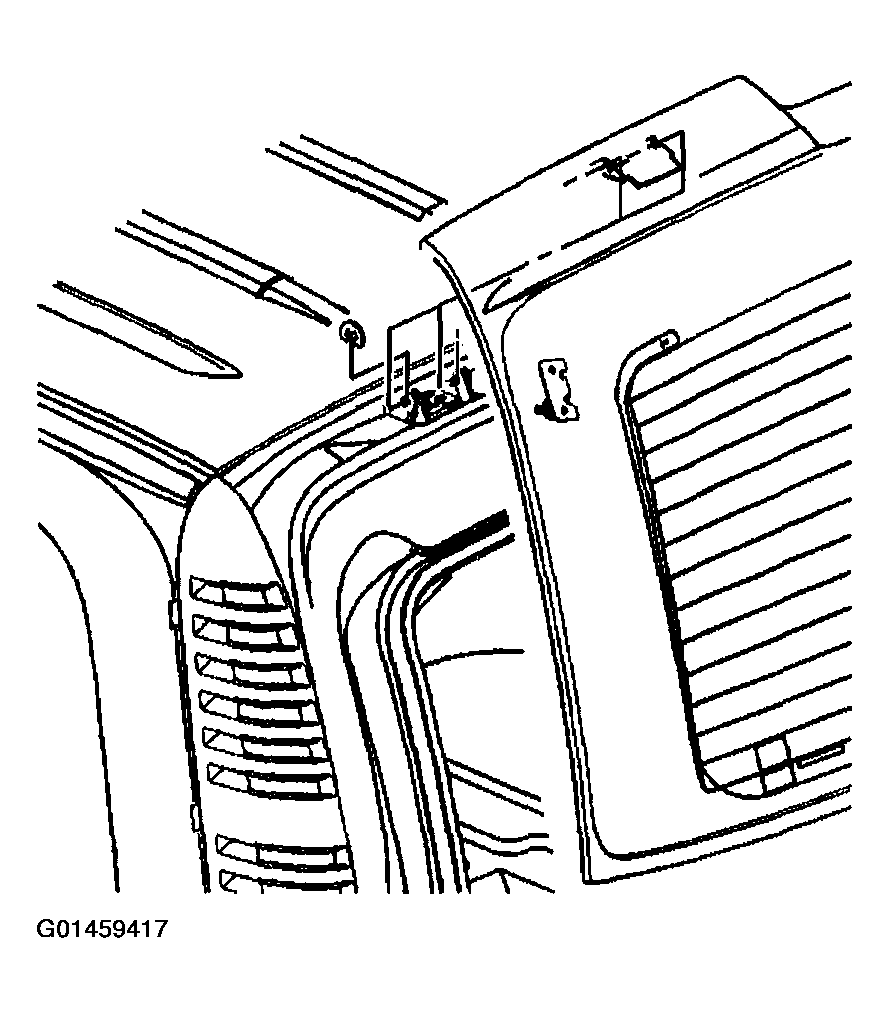

    8. Fig 1: Removing Bolts Retaining Lift Gate Hinge To Body Mounted Hinge Locator
    G01459417Courtesy of GENERAL MOTORS CORP.
  8. With an assistant, remove the lift gate.
