Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cargo box stowage lid to the vehicle.
  2. Install the bolts (1) to the cargo box stowage lid.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    1. Tighten the bolts to 9 N.m (80 lb in).

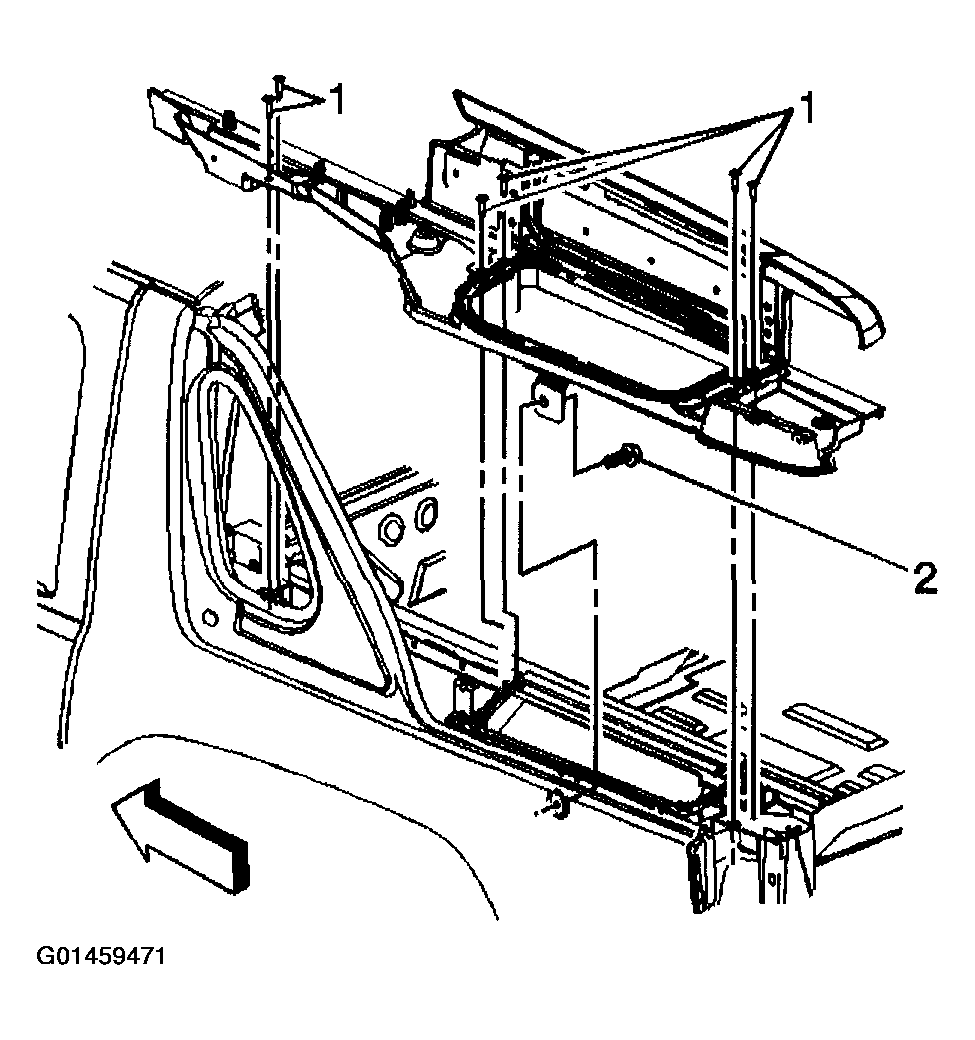

    3. Fig 1: Installing Bolts To Cargo Box Stowage Lid
    G01459471Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt (2) inside the cargo box stowage lid assembly.

    Tighten

    1. Tighten the bolt to 9 N.m (80 lb in).
  4. Install the cargo box bridge side inner panel. Refer to PANEL REPLACEMENT - CARGO BOX BRIDGE SIDE INNER (AVALANCHE/EXT) .
  5. Install the assist handle. Refer to ASSIST HANDLE REPLACEMENT - END GATE (AVALANCHE)  .
  6. Install the rear compartment cover assembly.
  7. Close the end gate.
