Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the removable window panel.
  2. Remove the trim panel (1) along the rear of the headliner. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER (AVALANCHE/ESCALADE EXT) or GARNISH MOLDING REPLACEMENT - REAR UPPER (TAHOE/YUKON/ESCALADE/SUBURBAN) in Interior trim.
  3. Remove the latch retaining bolts.
  4. Disconnect the electrical connector (2) from the latch.

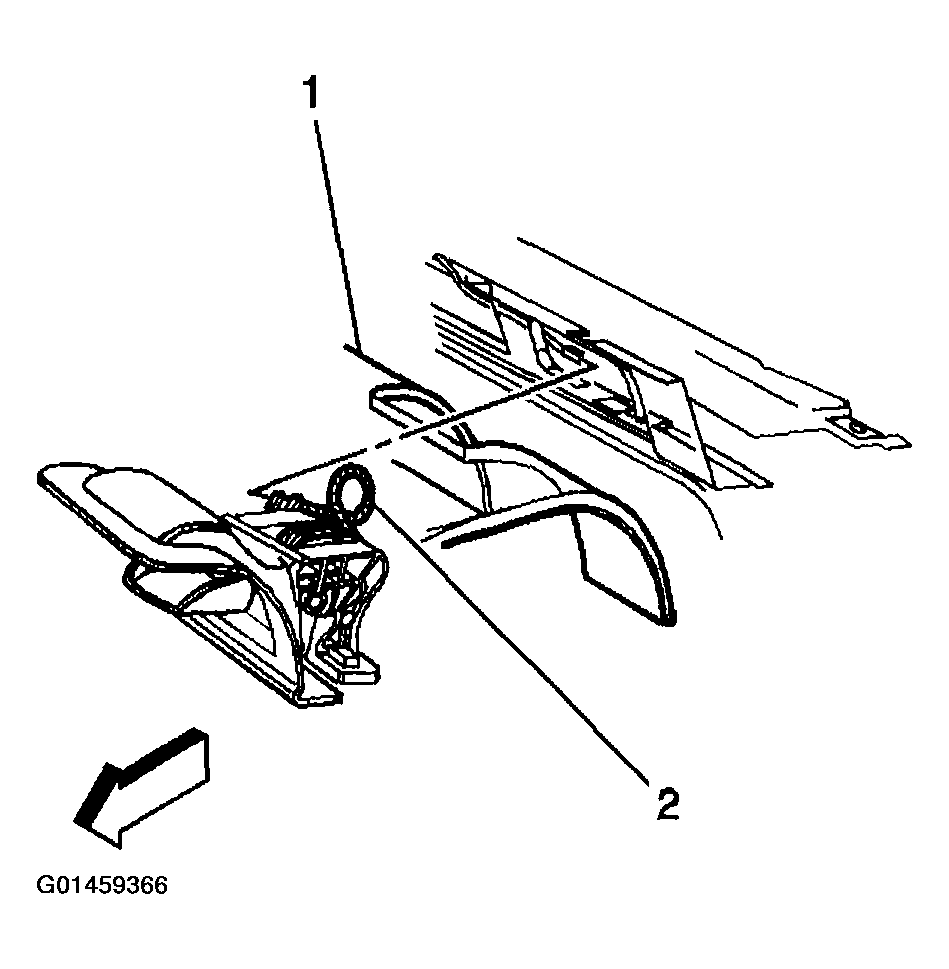

    5. Fig 1: Disconnecting Electrical Connector From Latch
    G01459366Courtesy of GENERAL MOTORS CORP.
  5. Remove the latch from the vehicle.
