Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the endgate.
  2. Loosen the handle bolts.
  3. Raise the endgate.

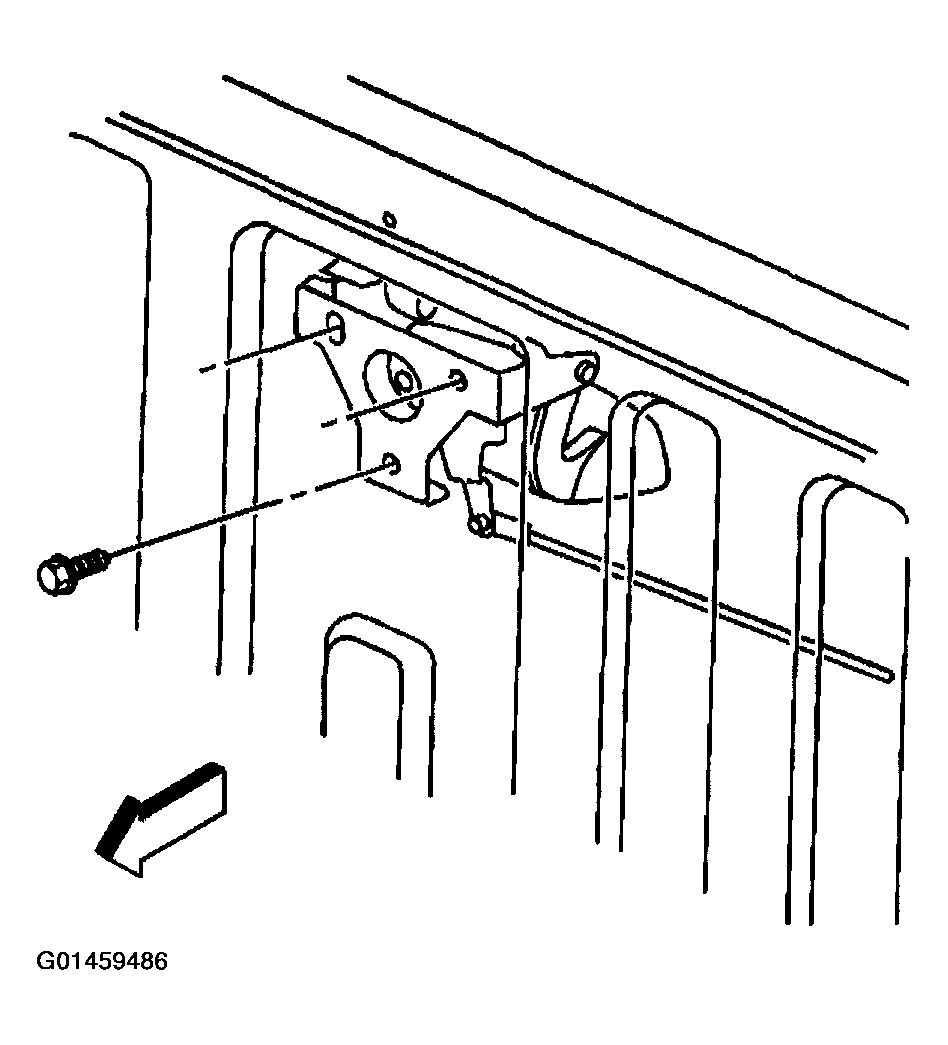

    4. Fig 1: Removing Handle Bolts
    G01459486Courtesy of GENERAL MOTORS CORP.
  4. Remove the handle bezel by prying gently on the upper retainer tabs.
    5. Fig 2: Removing Handle Bezel
    G01459487Courtesy of GENERAL MOTORS CORP.
  5. Disengage the linkage rods (1).
    6. Fig 3: Disengaging Linkage Rods
    G01459488Courtesy of GENERAL MOTORS CORP.
  6. Lower and support the endgate.
  7. Remove the cables from the side panel cable retainer bolts.

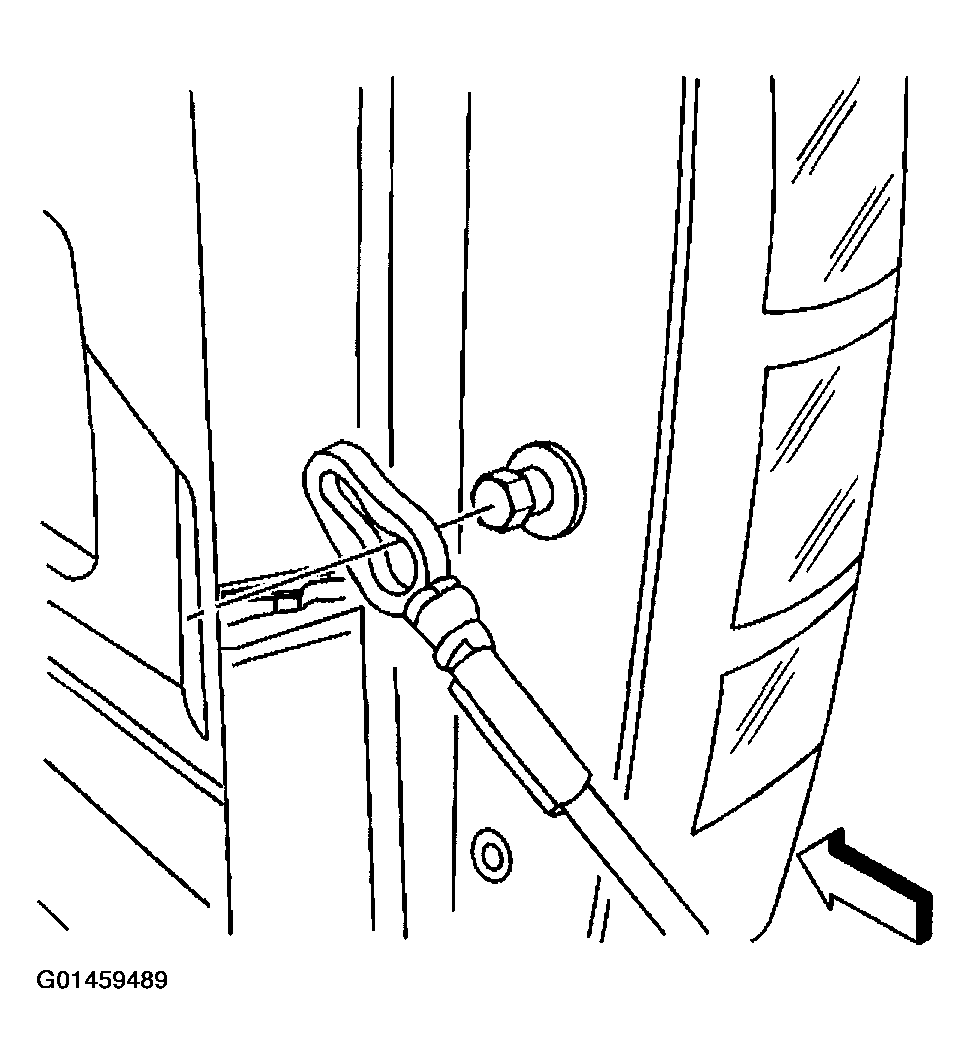

    8. Fig 4: Removing Cables From Side Panel Cable Retainer Bolts
    G01459489Courtesy of GENERAL MOTORS CORP.
  8. Remove the bolt holding the latch assembly.

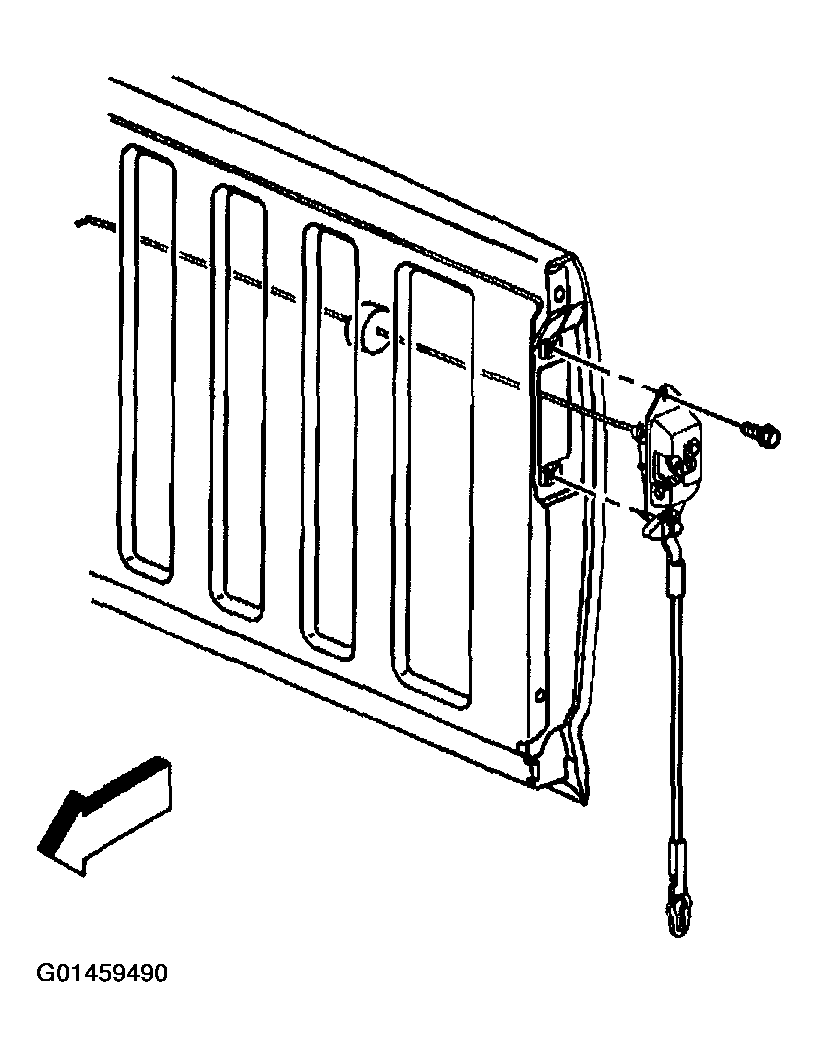

    9. Fig 5: Removing Bolt Holding Latch Assembly
    G01459490Courtesy of GENERAL MOTORS CORP.
  9. Disengage the linkage rod from the latch assembly.
  10. Remove the latch assembly from the endgate.
    11. Fig 6: Disengaging Linkage Rod From Latch Assembly
    G01459491Courtesy of GENERAL MOTORS CORP.
