Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel, as necessary. Refer to TRIM PANEL REPLACEMENT - REAR DOOR  .
  2. Pull back the water deflector, as necessary. Refer to WATER DEFLECTOR REPLACEMENT  .
  3. Disconnect the lower latch cable from the handle.
  4. Remove the latch control handle screws.
  5. Remove the latch control handle.
  6. Disconnect the upper latch cable from the handle.

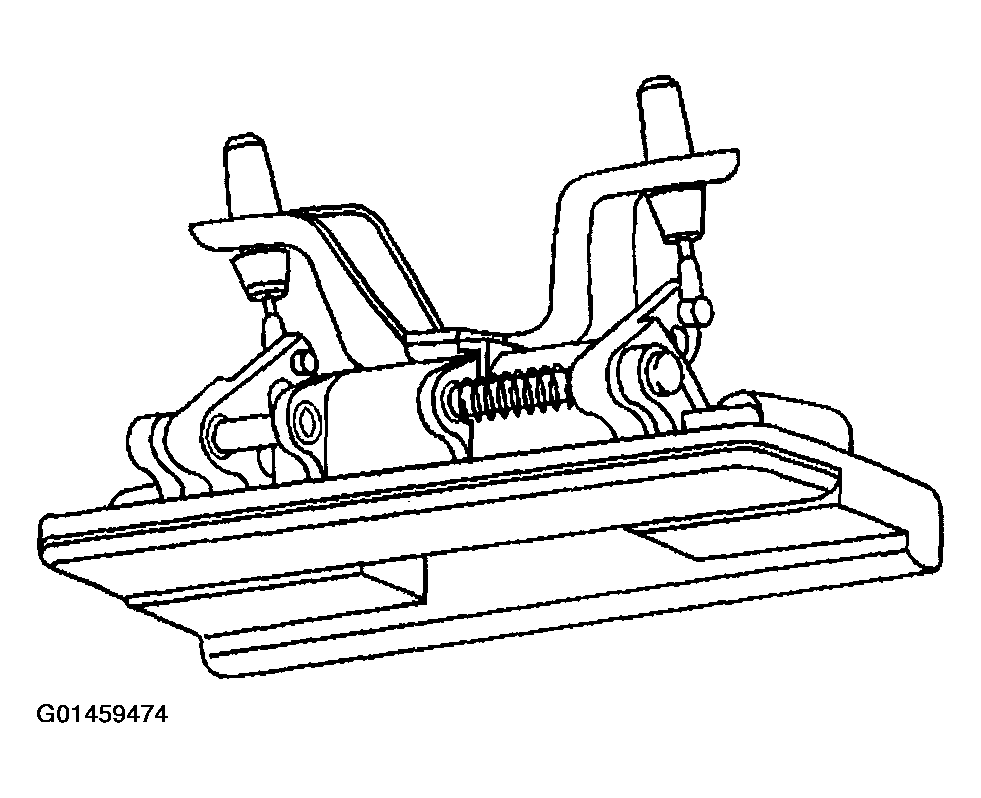

    7. Fig 1: Removing Latch Control Handle
    G01459474Courtesy of GENERAL MOTORS CORP.
