Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Pry gently with a thin bladed tool in order to remove the retaining clips.
  3. Remove the garnish molding from the door.

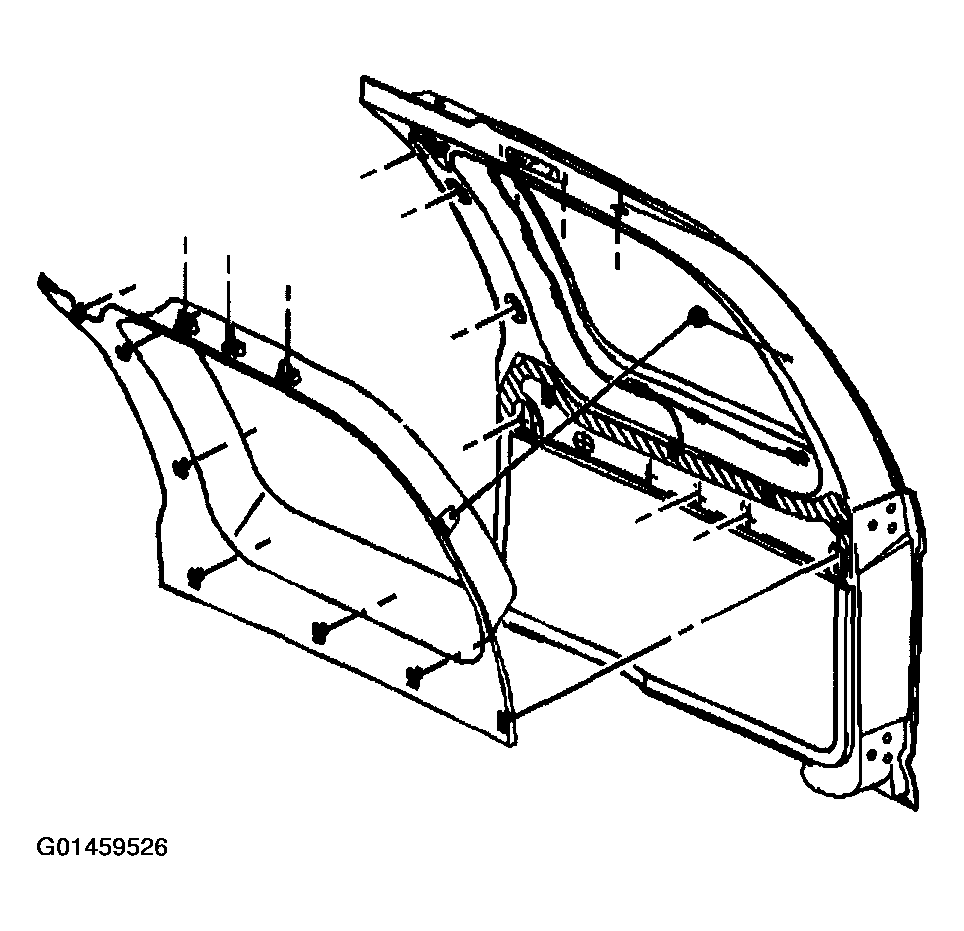

    4. Fig 1: Removing Garnish Molding From Door
    G01459526Courtesy of GENERAL MOTORS CORP.
