Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Remove the push pin retainers from the garnish molding.
  3. Pry gently with a thin-bladed tool in order to release the retaining clips.
  4. Remove the garnish molding.

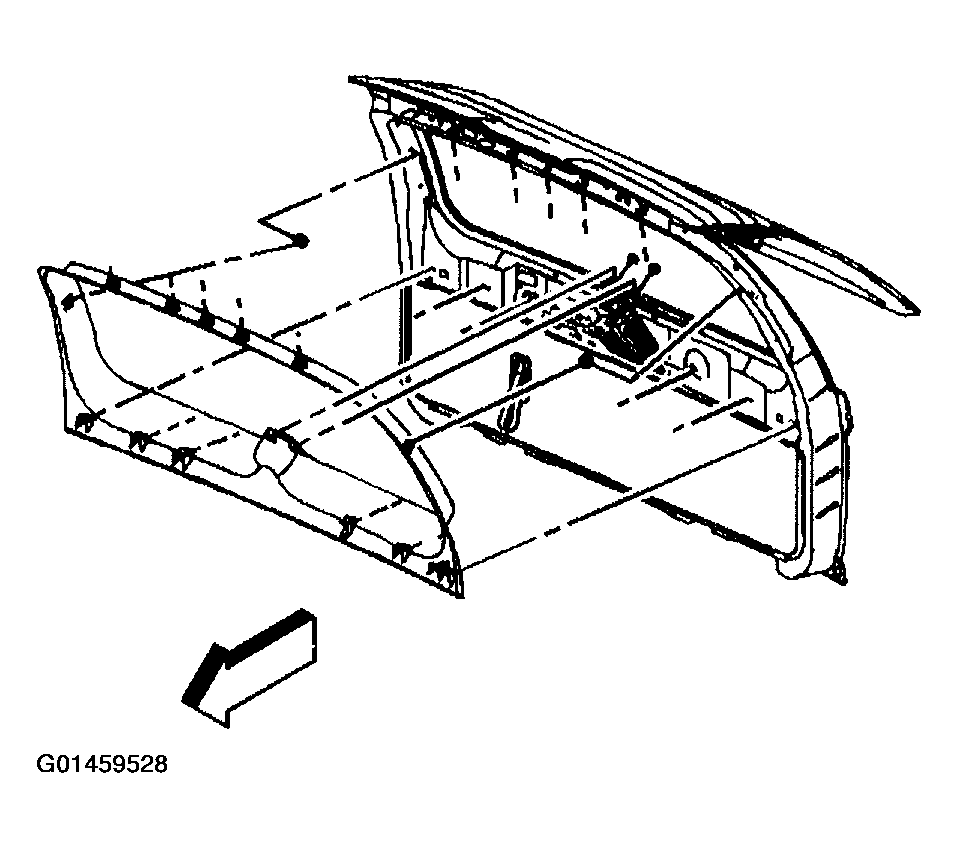

    5. Fig 1: Removing Garnish Molding
    G01459528Courtesy of GENERAL MOTORS CORP.
