Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear floor trim plate (1) to the vehicle.

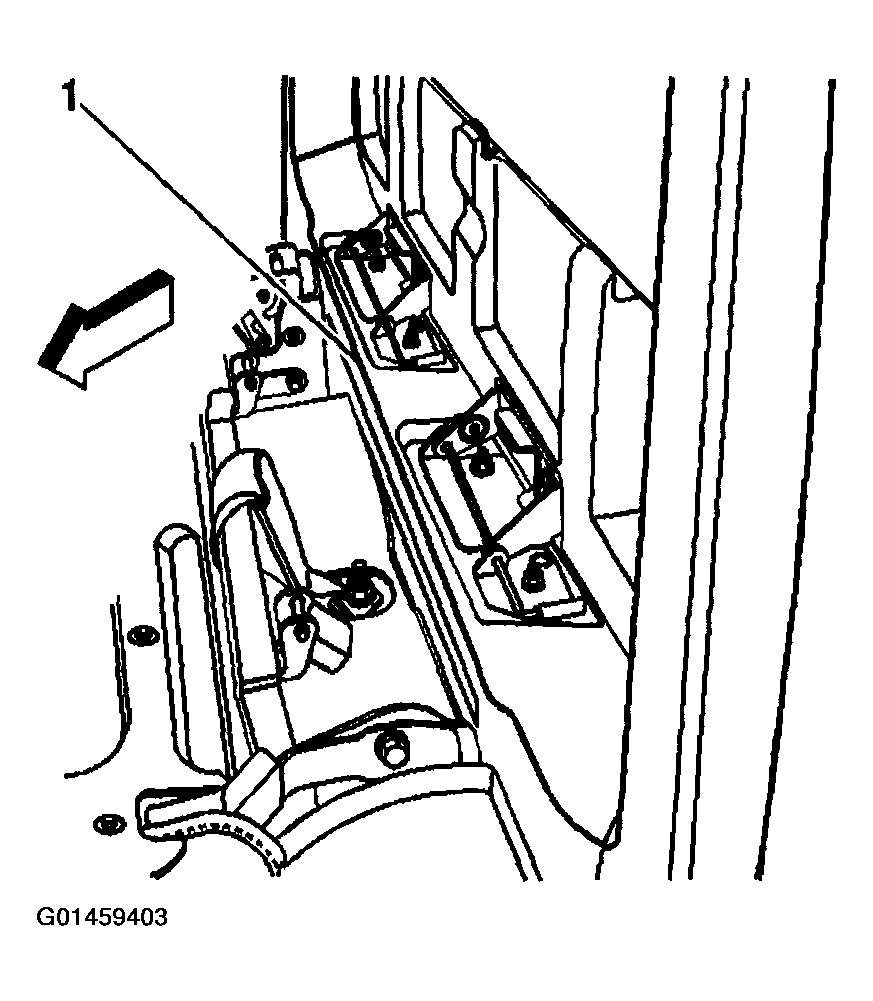

    2. Fig 1: Installing Rear Floor Trim Plate To Vehicle
    G01459403Courtesy of GENERAL MOTORS CORP.
  2. Install the hinges to the mid gate. Refer to HINGE REPLACEMENT - REMOVABLE REAR PANEL - MID GATE  .
  3. Install the third pillar trim. Refer to TRIM REPLACEMENT - THIRD PILLAR (TAHOE/YUKON/ESCALADE/SUBURBAN) or TRIM REPLACEMENT - THIRD PILLAR (AVALANCHE/ESCALADE EXT) in Interior Trim.
