Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the endgate.
  2. Remove the theft deterrent bolt.

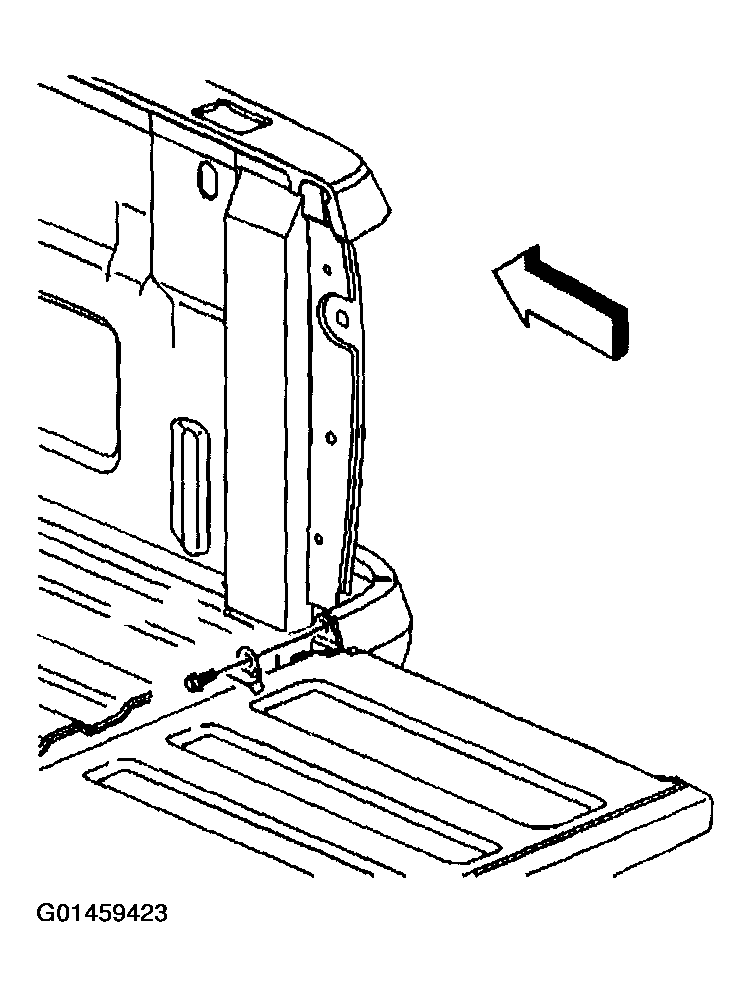

    3. Fig 1: Removing Theft Deterrent Bolt
    G01459423Courtesy of GENERAL MOTORS CORP.
  3. With an assistant, raise the endgate to a 45 degree angle.

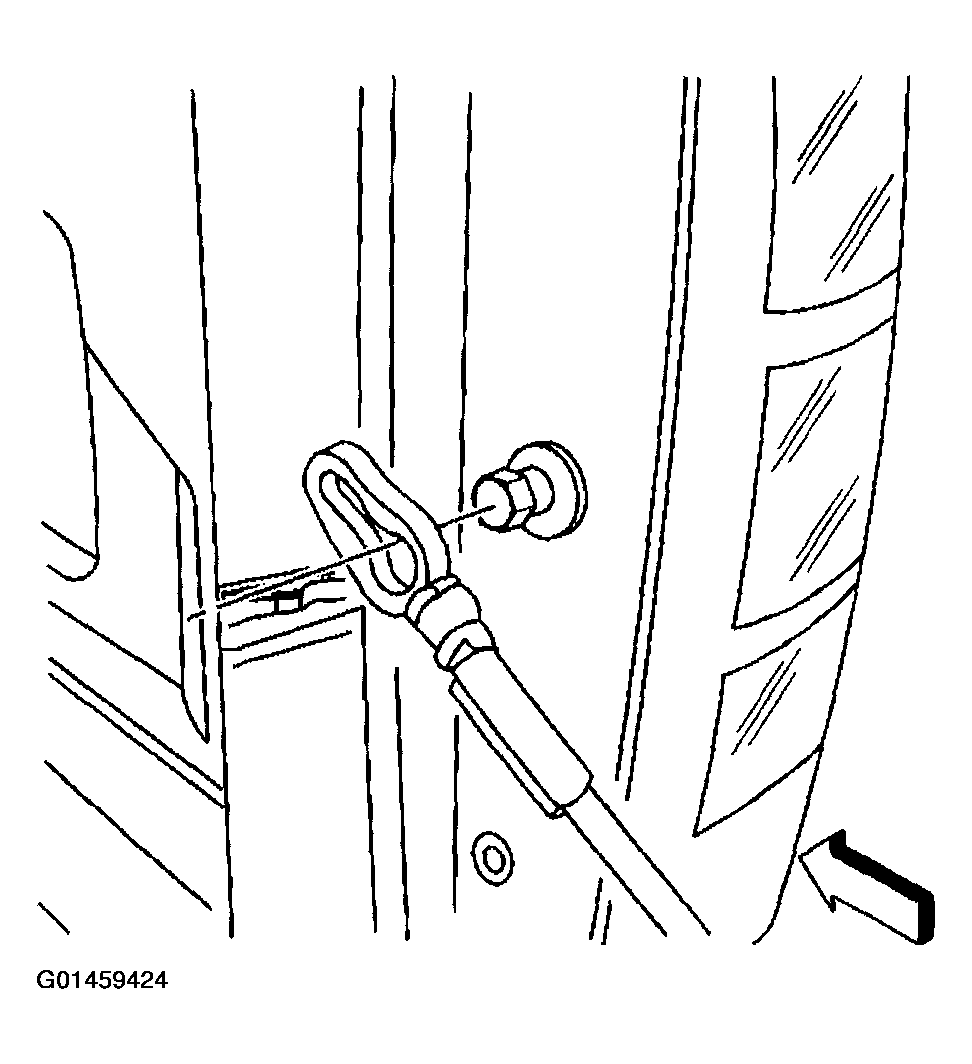

  4. Remove the cable on each side from the side panel striker bolts.
  5. Remove the endgate from the right side hinge assembly by lifting up on the right side.
    6. Fig 2: Removing Endgate From Right Side Hinge Assembly
    G01459424Courtesy of GENERAL MOTORS CORP.
  6. With an assistant, remove the endgate from the left body side hinge by sliding to the right and lifting.
