Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment cover assembly.
  2. Remove the assist handle. Refer to ASSIST HANDLE REPLACEMENT - END GATE (AVALANCHE)  .
  3. Remove the cargo box stowage lid assembly. Refer to LID REPLACEMENT - CARGO BOX STOWAGE BOX (AVALANCHE)  .
  4. Remove the lamp socket from the pickup box side courtesy lamp.
  5. Remove the cargo box stowage box. Refer to BOX REPLACEMENT - CARGO STOWAGE (AVALANCHE)  .
  6. Remove the push-pin retainers from the duct assembly.
  7. Remove the drain hose and grommet from the inner fender wheelwell.
  8. Remove the duct assembly from the vehicle.

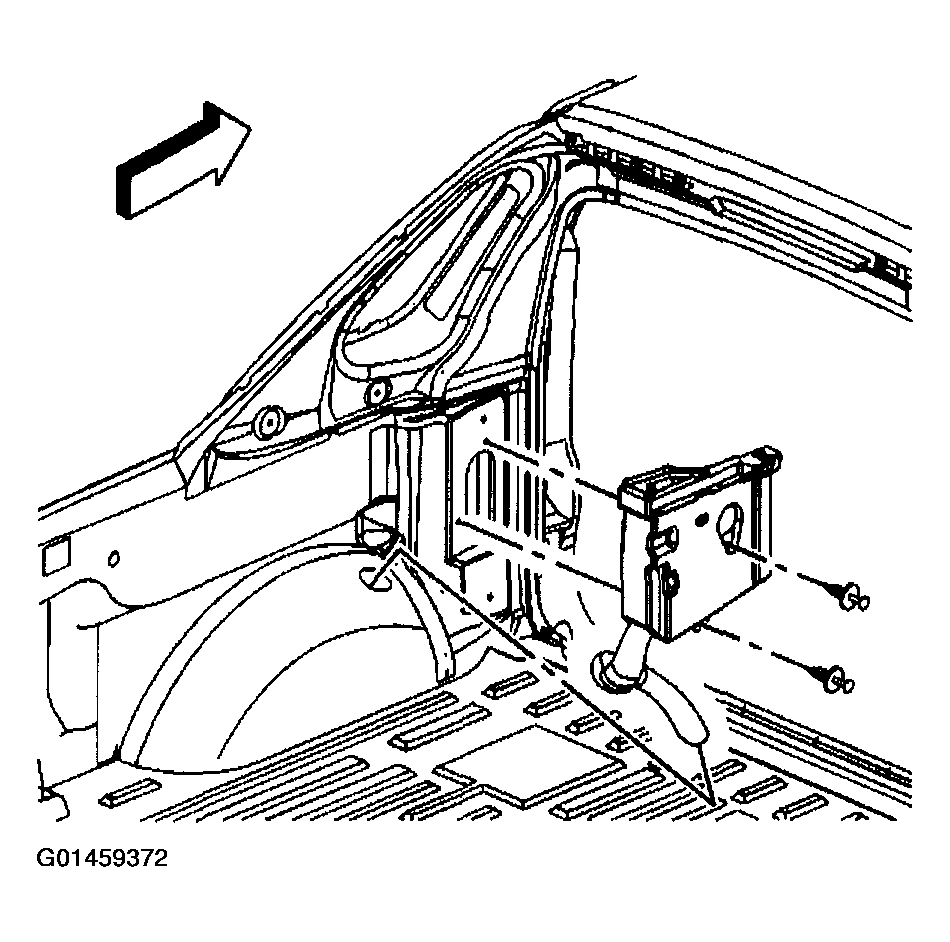

    9. Fig 1: Removing Duct Assembly From Vehicle
    G01459372Courtesy of GENERAL MOTORS CORP.
