Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the duct assembly to the vehicle.

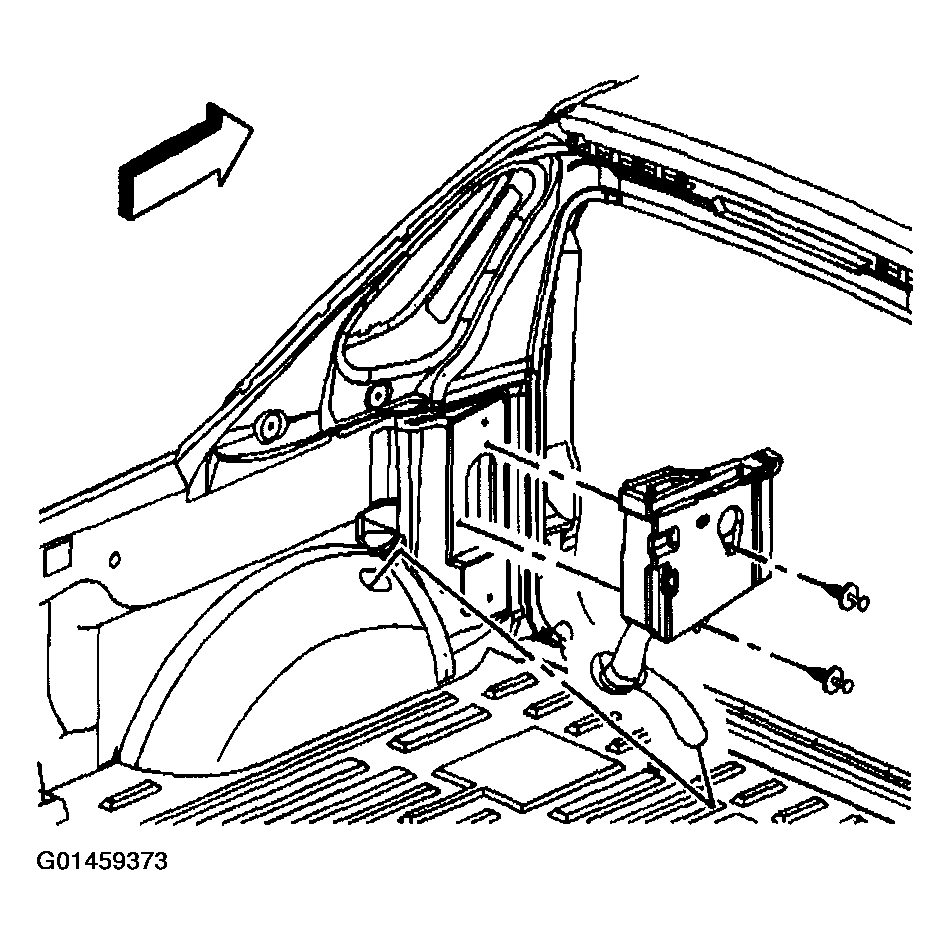

    2. Fig 1: Installing Duct Assembly To Vehicle
    G01459373Courtesy of GENERAL MOTORS CORP.
  2. Insert the drain hose and grommet to the inner fender wheelwell.
  3. Insert the push-pin retainers to the duct assembly.
  4. Install the cargo box stowage box. Refer to BOX REPLACEMENT - CARGO STOWAGE (AVALANCHE)  .
  5. Install the lamp socket to the pickup box side courtesy lamp assembly.
  6. Install the cargo box stowage lid assembly. Refer to LID REPLACEMENT - CARGO BOX STOWAGE BOX (AVALANCHE)  .
  7. Install the assist handle. Refer to ASSIST HANDLE REPLACEMENT - END GATE (AVALANCHE)  .
  8. Install the rear compartment cover assembly.
