Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper and lower hinge pin retainer clips to the hinge.
  2. Install the bolts on the roller assembly to the upper door side hinge.

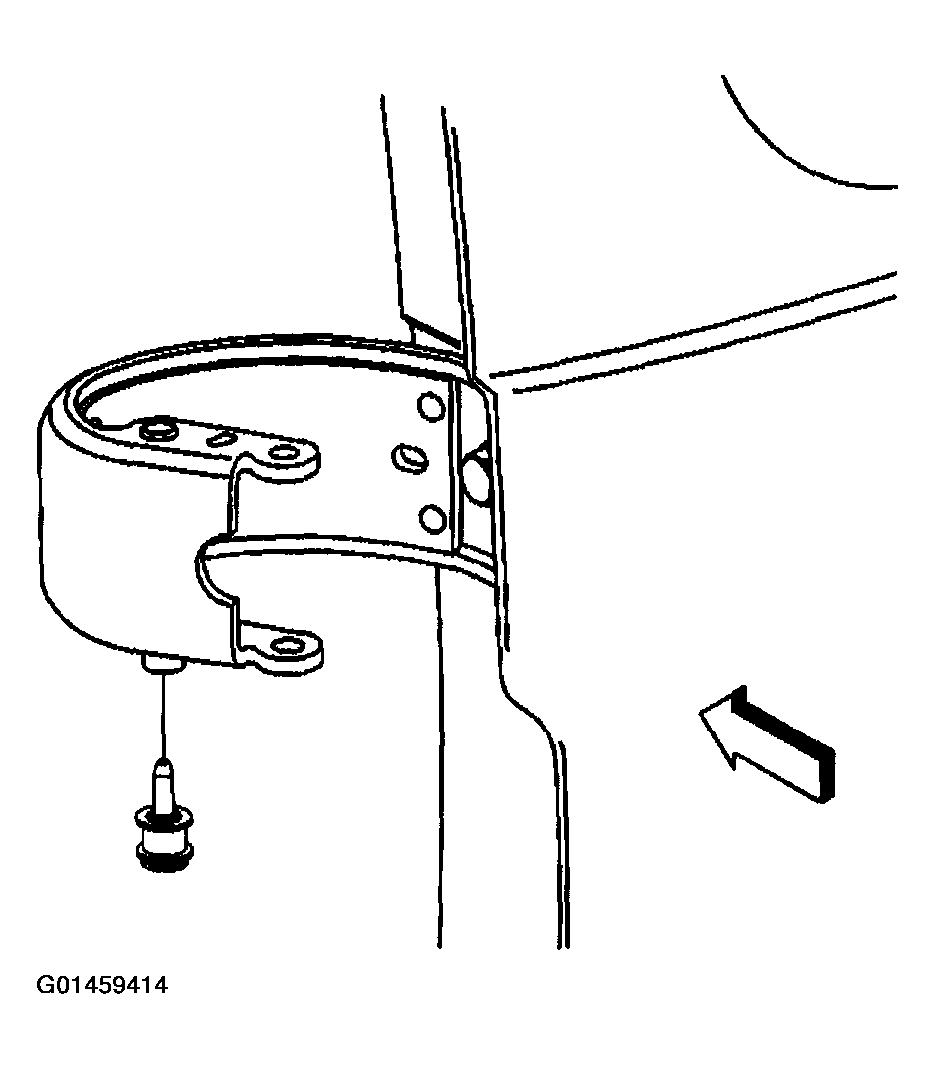

    3. Fig 1: Installing Bolts On Roller Assembly To Upper Door Side Hinge
    G01459414Courtesy of GENERAL MOTORS CORP.
  3. With an assistant, position the door to the vehicle.
  4. Install a bolt through the lower hinge pin holes.

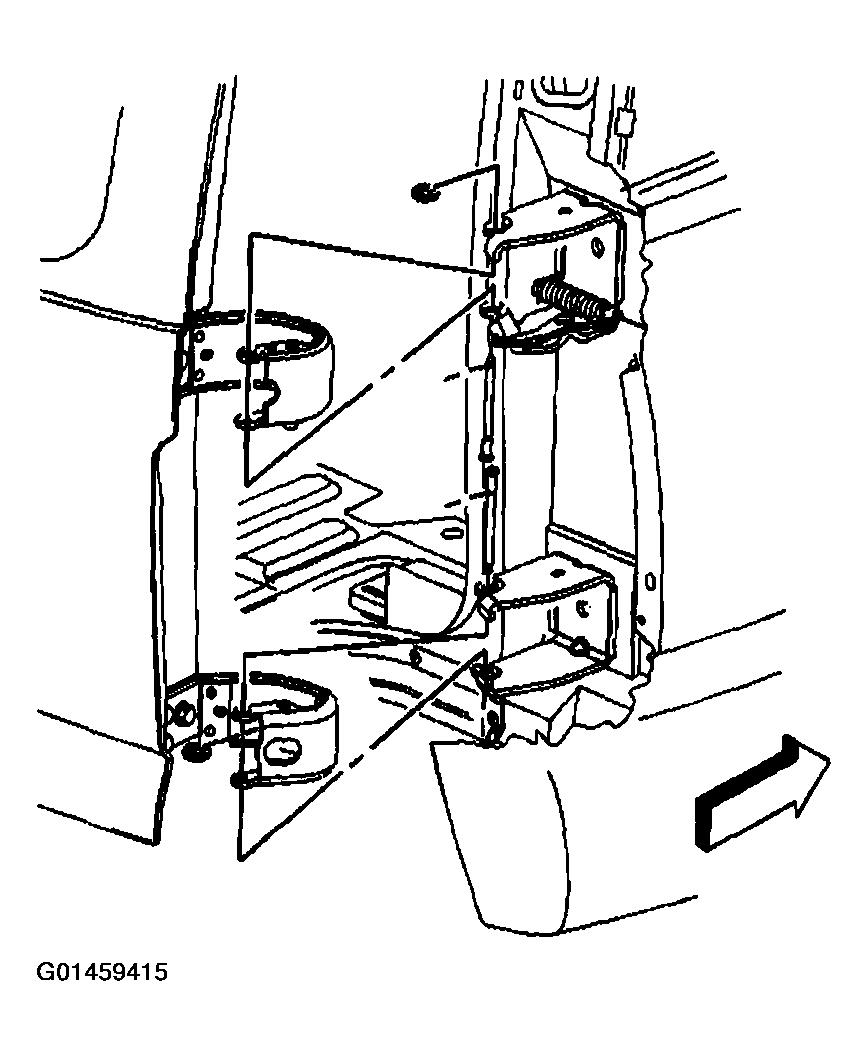

    5. Fig 2: Installing Bolt Through Lower Hinge Pin Holes
    G01459415Courtesy of GENERAL MOTORS CORP.
  5. Using a soft-faced hammer and a pair of locking pliers, install the upper hinge pin with the pointed end of the pin pointing upward.
  6. Remove the temporary bolt from the lower hinge.
  7. Install the lower hinge pin with the pointed end of the pin pointing downward.
  8. Remove the cloth-backed tape from the door and the body pillar.
  9. Install the taillamps. Refer to TAIL/TURN SIGNAL LAMP REPLACEMENT in Lighting Systems.
  10. Install the check assembly hinge pin with the pointed end of the pin pointing downward.
  11. Connect the negative battery cable, as necessary on vehicles with power components. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
