Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the end gate.
  2. Remove the rear compartment cover assembly.
  3. Remove the rear cargo box side drain cups. Refer to CARGO BOX REAR GUTTER SIDE DRAIN REPLACEMENT - B CUP  .
  4. Remove the front cargo box side drain cups. Refer to CARGO BOX FRONT GUTTER SIDE DRAIN REPLACEMENT - A CUP  .
  5. Pull downward to disengage the drain gutter retainers from the cargo stowage box.

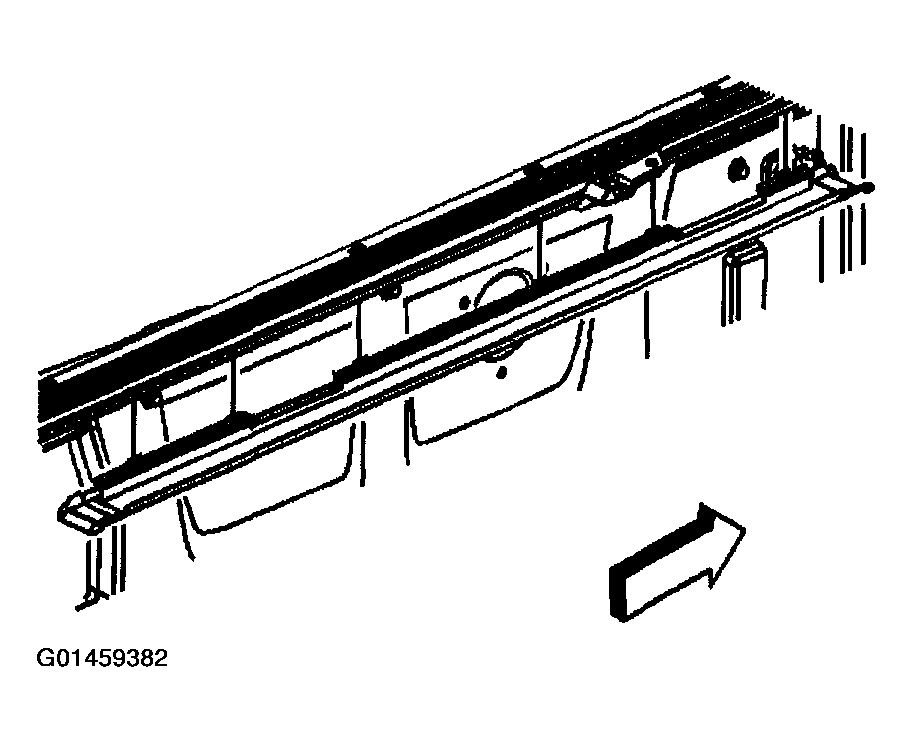

    6. Fig 1: Removing Cargo Box Gutter Side Drain Assembly
    G01459382Courtesy of GENERAL MOTORS CORP.
