Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the mid gate.
  2. Remove the compartment cover.
  3. Remover the front cargo box side drain cup retainer.

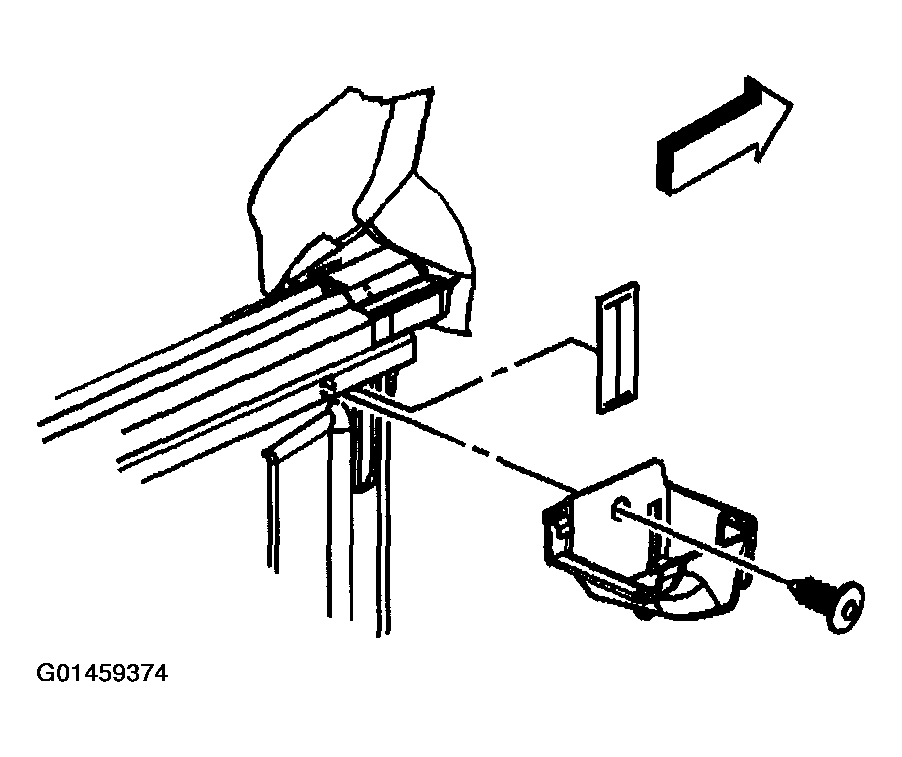

    4. Fig 1: Removing Front Cargo Box Side Drain Cup Retainer
    G01459374Courtesy of GENERAL MOTORS CORP.
  4. Pull the drain cup away and forward to disengage the cup from the cargo box side.

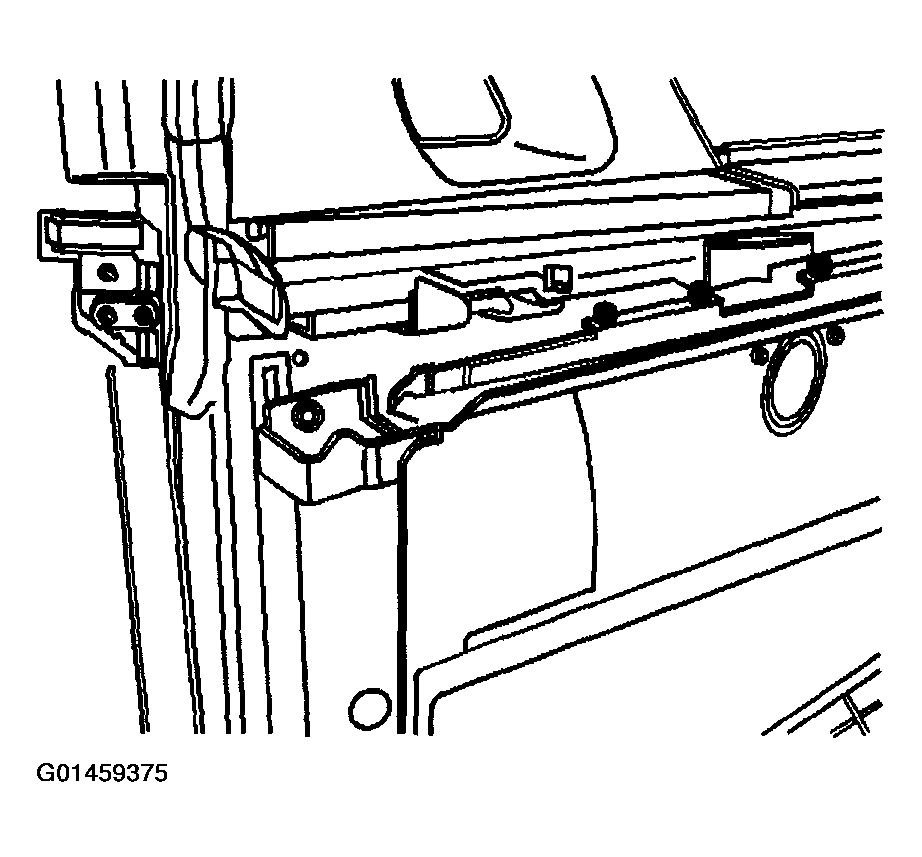

    5. Fig 2: Pulling Drain Cup Away And Forward To Disengage Cup
    G01459375Courtesy of GENERAL MOTORS CORP.
