Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the cup to engage the drain gutter.
  2. Insert the drain cup into the cargo box side.

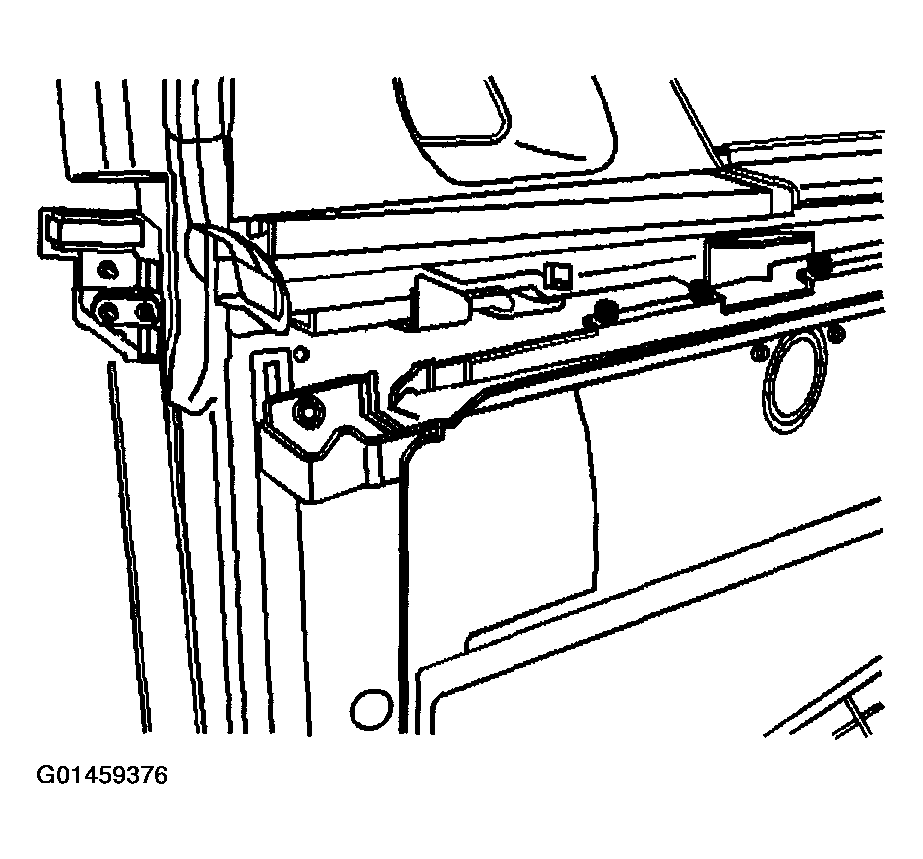

    3. Fig 1: Inserting Drain Cup Into Cargo Box Side
    G01459376Courtesy of GENERAL MOTORS CORP.
  3. Install the front cargo box side drain cup retainer.

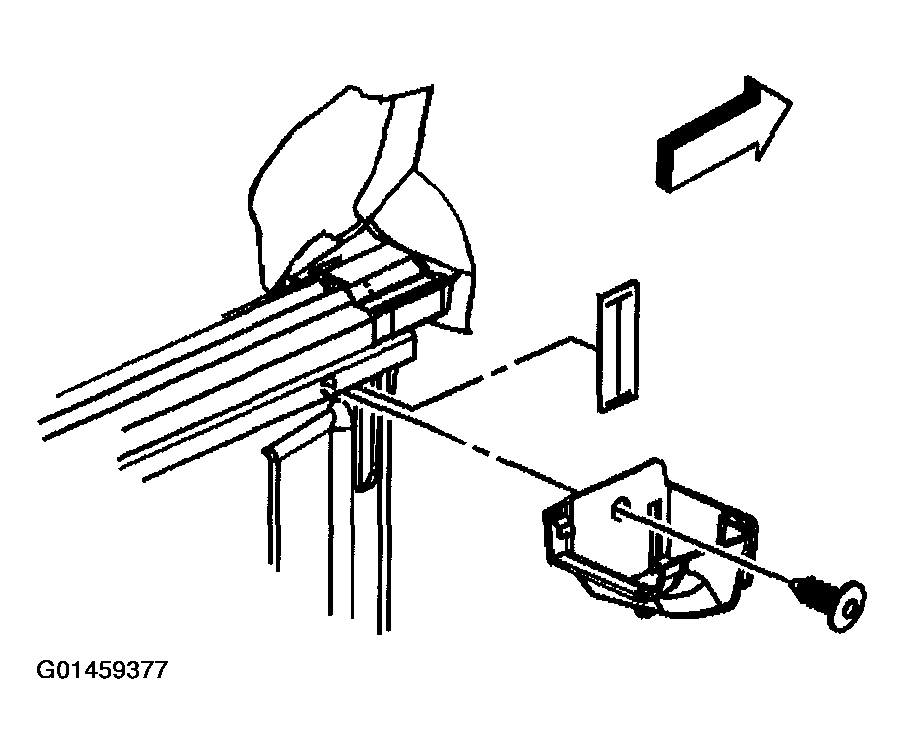

    4. Fig 2: Installing Front Cargo Box Side Drain Cup Retainer
    G01459377Courtesy of GENERAL MOTORS CORP.
  4. Close the mid gate.
  5. Install the compartment cover.
