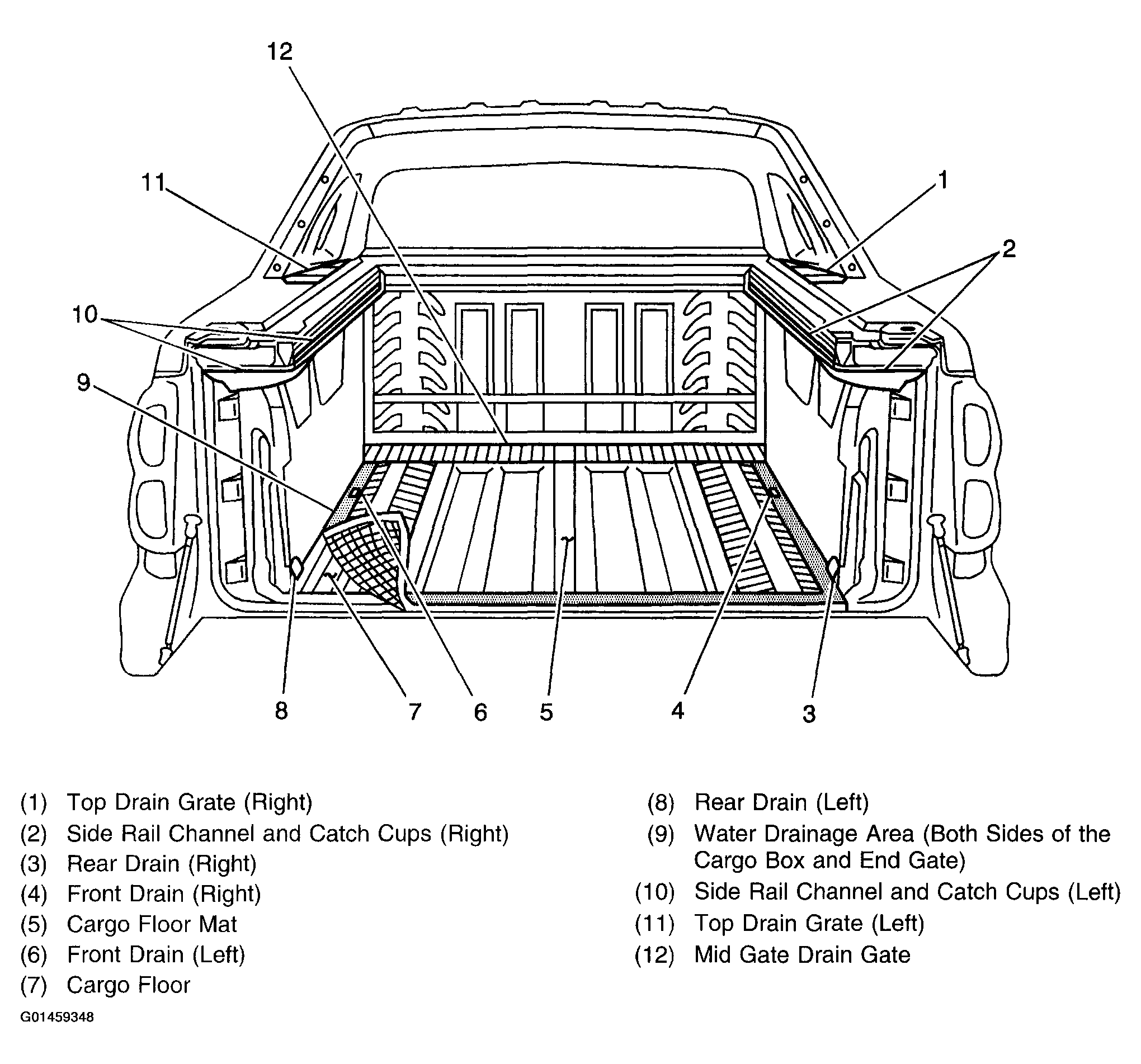

Cargo Area Water Management System Identification
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: All drain valves are removable for cleaning of the valve and the drain channel. Please note the position of the drain valve to the vehicle before removal. Improper installation of a drain valve will allow improper draining of the water and possible excessive water intrusion into the cargo/cab area.
