Body Rear End Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

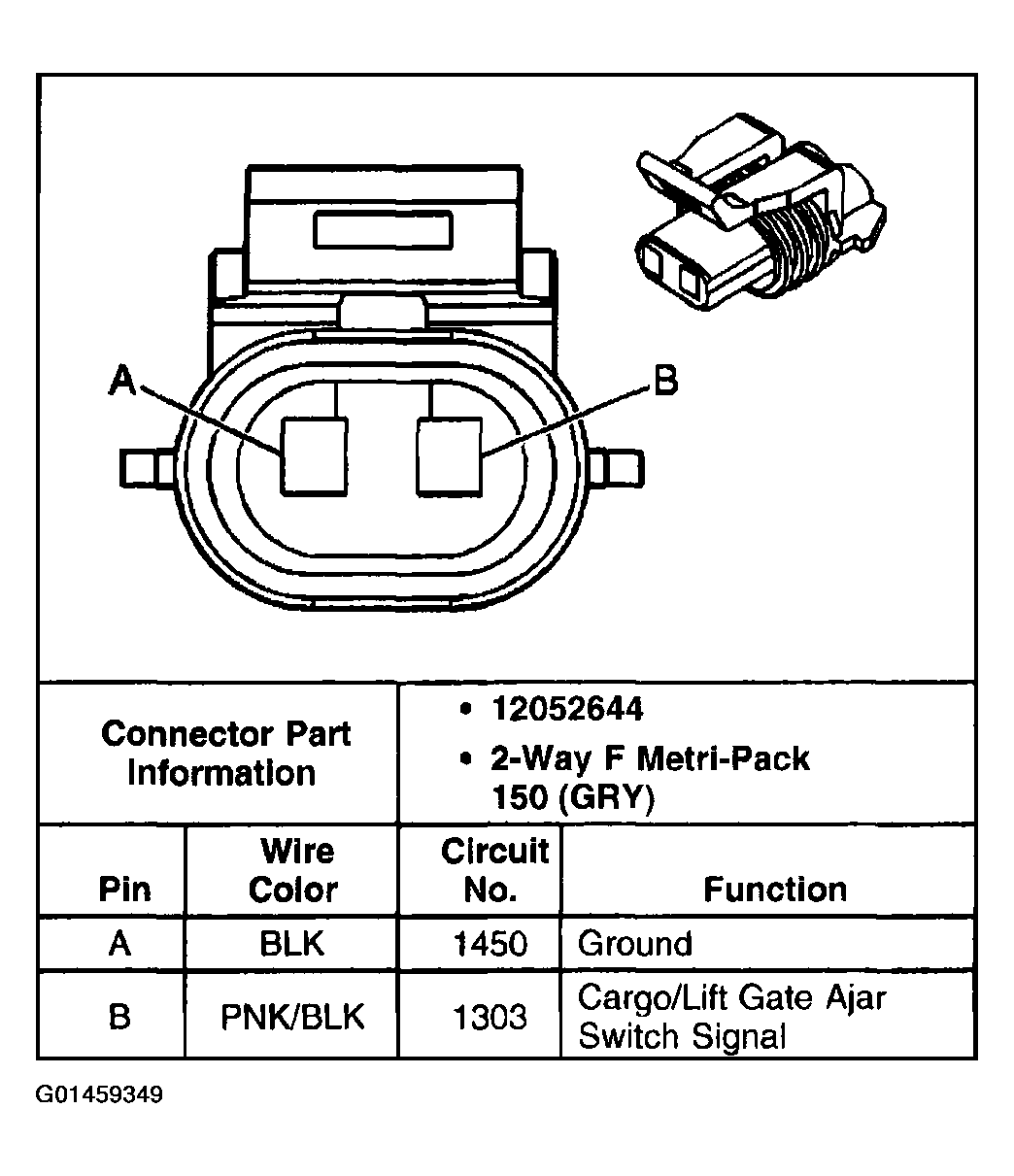

Fig 1: Identifying Door Ajar Switch - Right Cargo Terminals

G01459349

Courtesy of GENERAL MOTORS CORP.

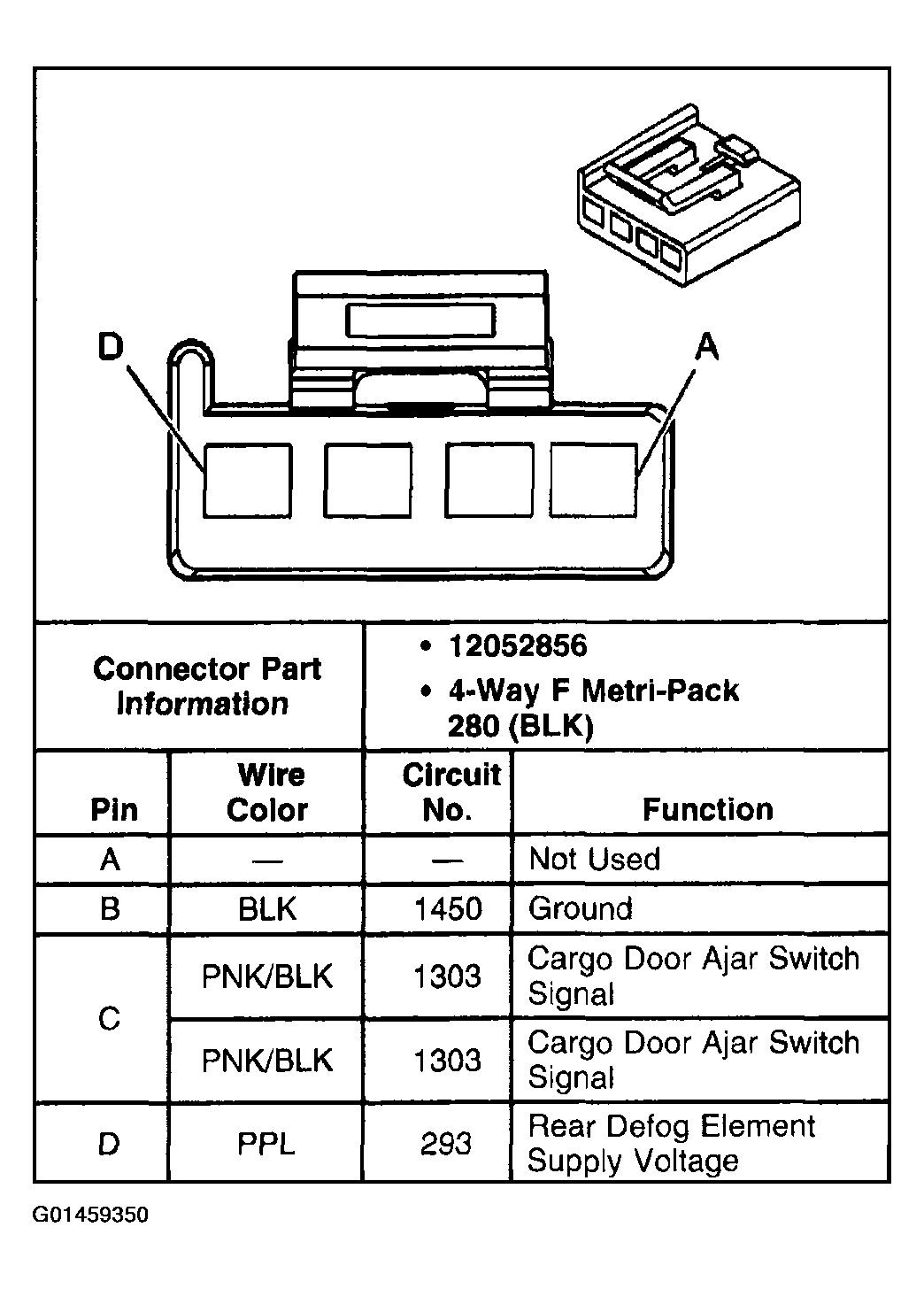

Fig 2: Identifying Door Contact Plate - Right C1 (Body Side) Terminals

G01459350

Courtesy of GENERAL MOTORS CORP.

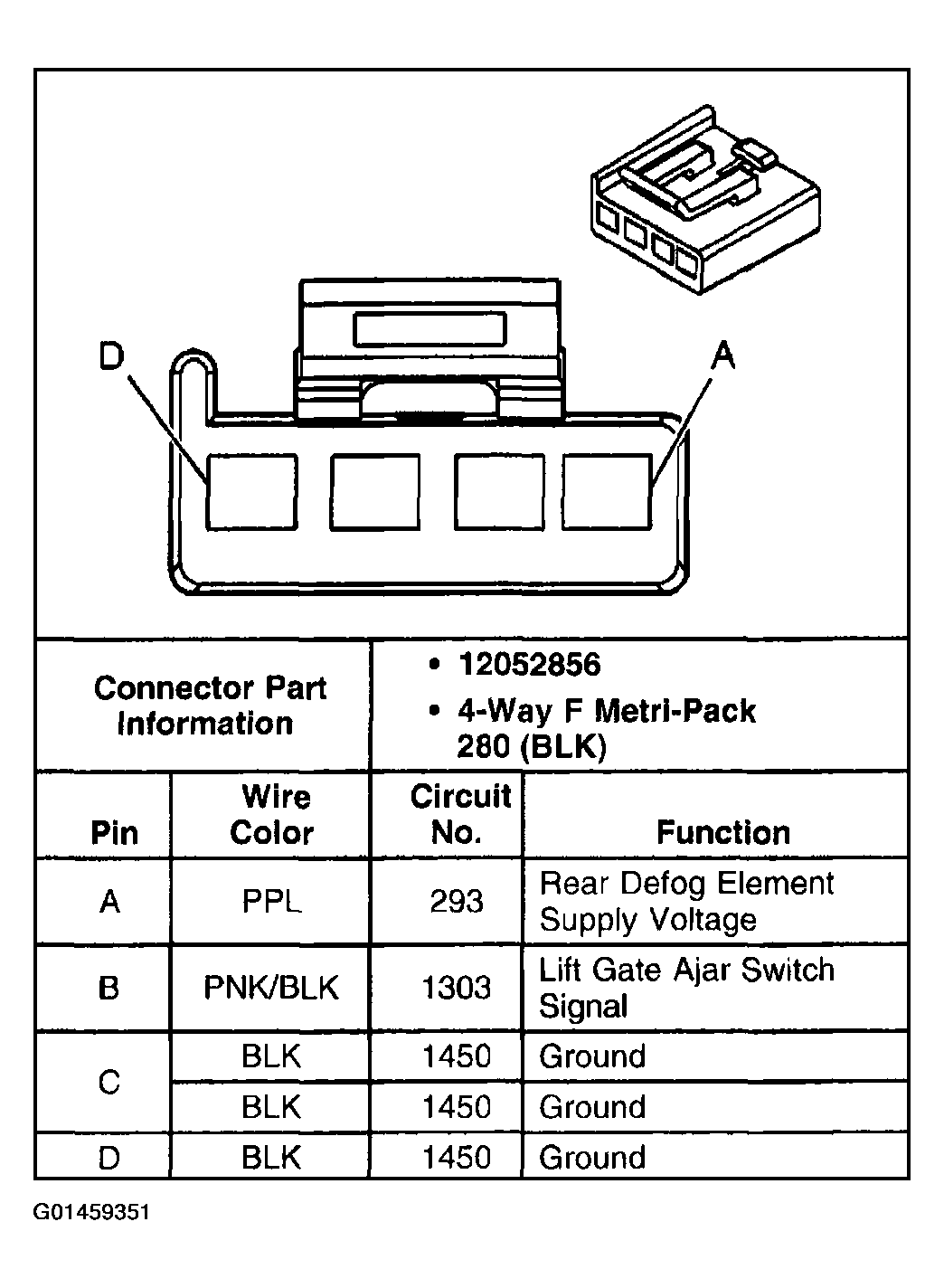

Fig 3: Identifying Door Contact Plate - Right C1 (Door Side) Terminals

G01459351

Courtesy of GENERAL MOTORS CORP.

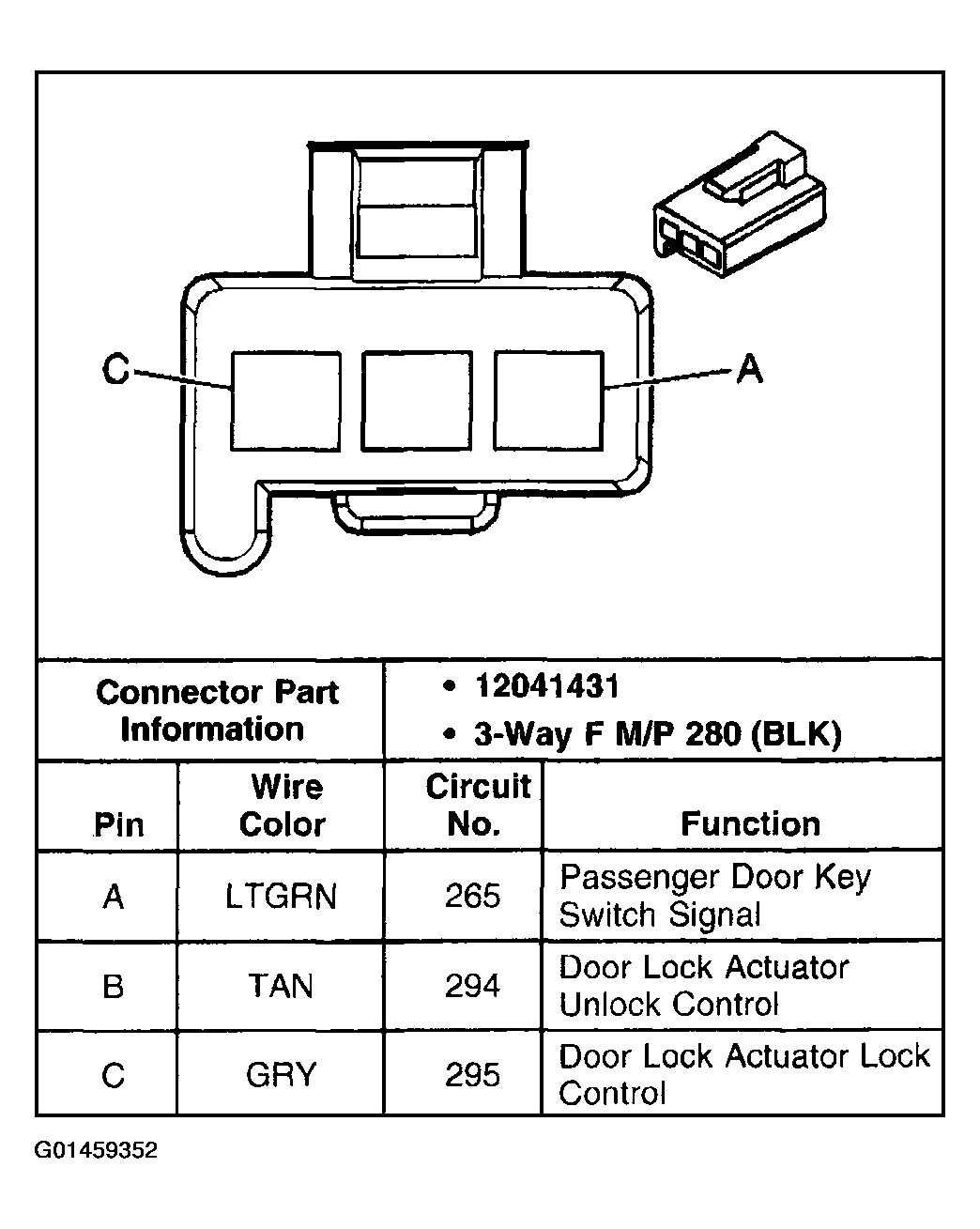

Fig 4: Identifying Door Contact Plate - Right C2 (Body Side) Terminals

G01459352

Courtesy of GENERAL MOTORS CORP.

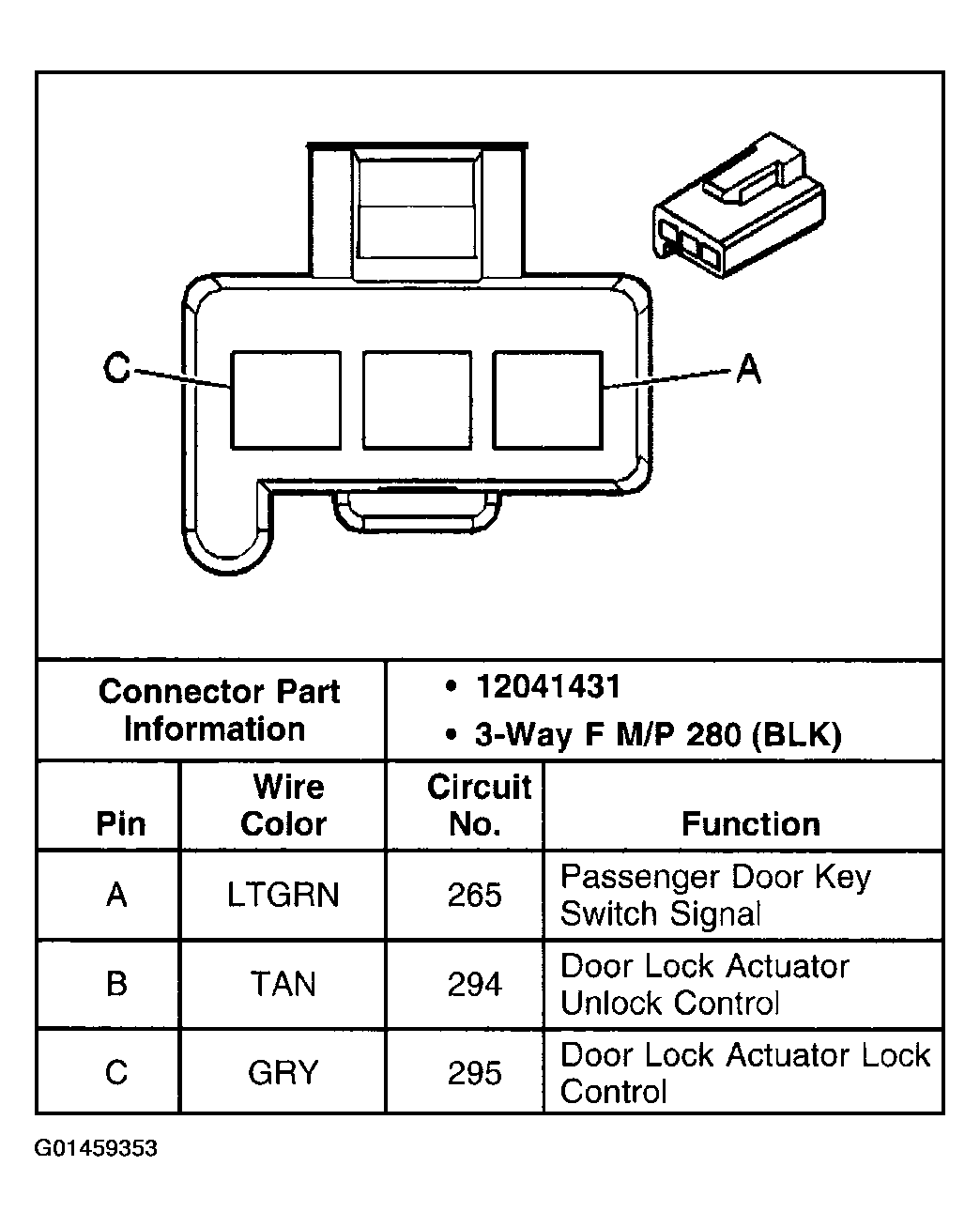

Fig 5: Identifying Door Contact Plate - Right C2 (Door Side) Terminals

G01459353

Courtesy of GENERAL MOTORS CORP.

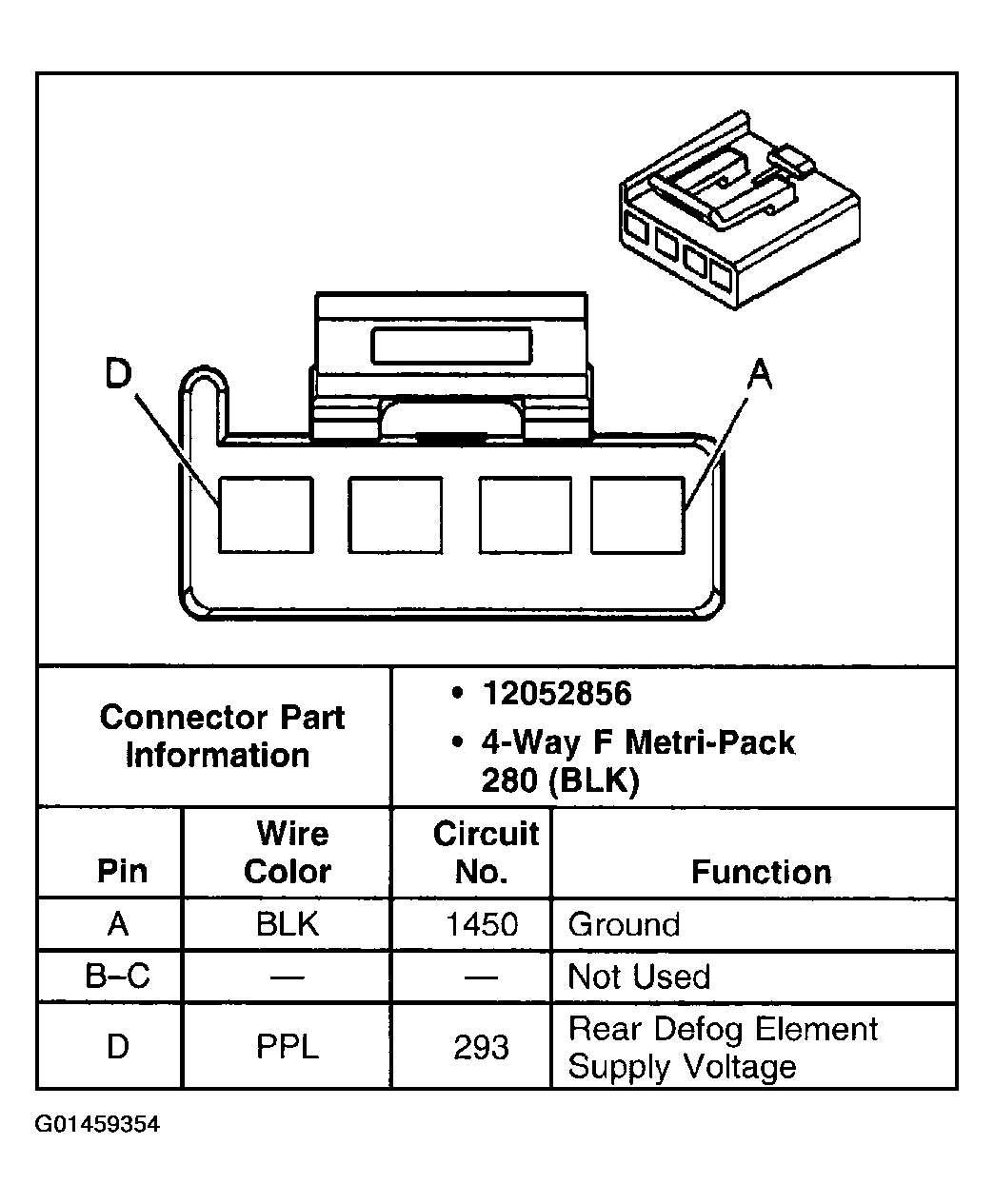

Fig 6: Identifying Door Contact Plate - Left (Door Side) Terminals

G01459354

Courtesy of GENERAL MOTORS CORP.

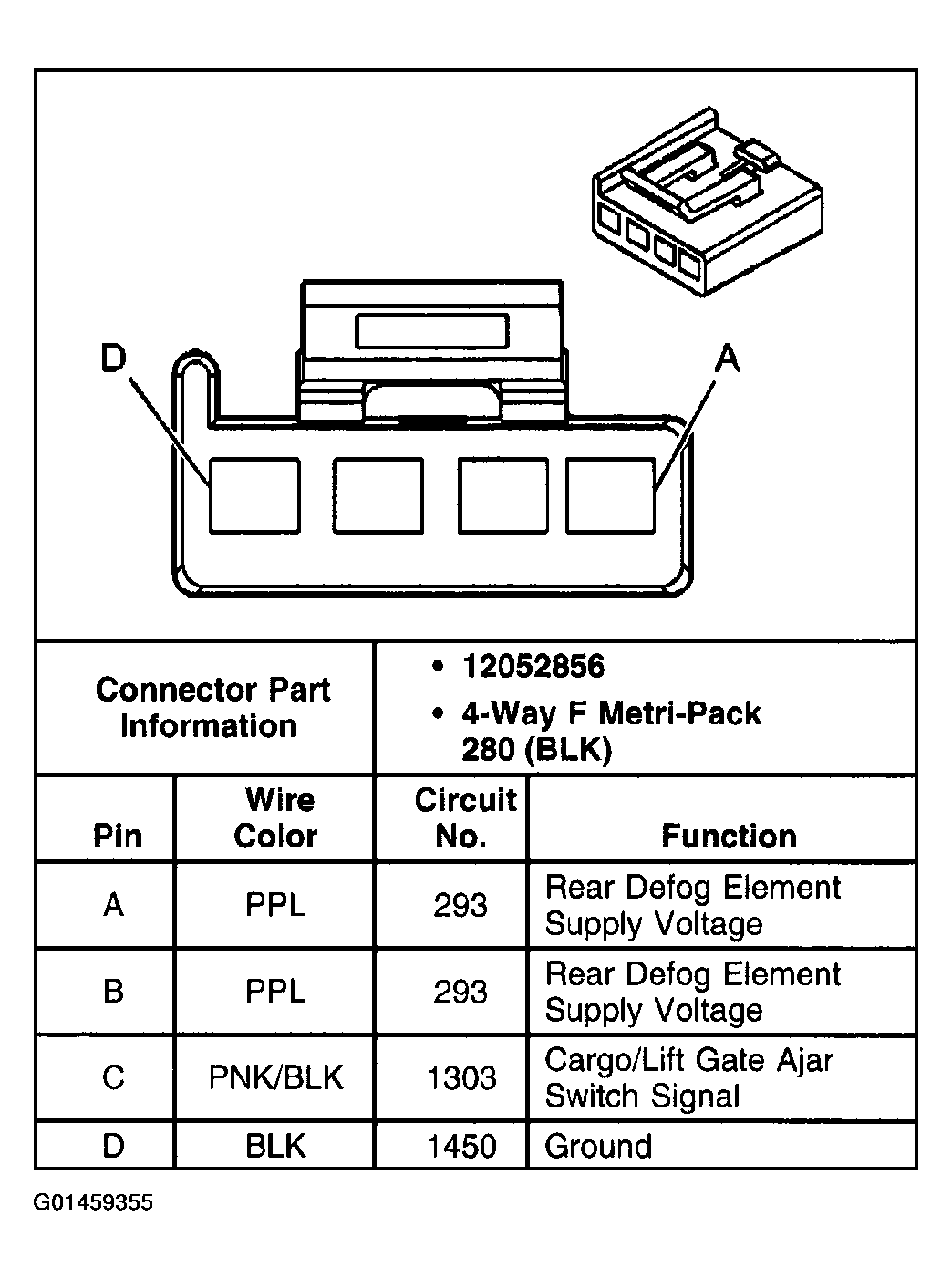

Fig 7: Identifying Door Contact Plate - Left (Body Side) Terminals

G01459355

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Lift Gate Ajar Switch - Left and Right Terminals

G01459356

Courtesy of GENERAL MOTORS CORP.

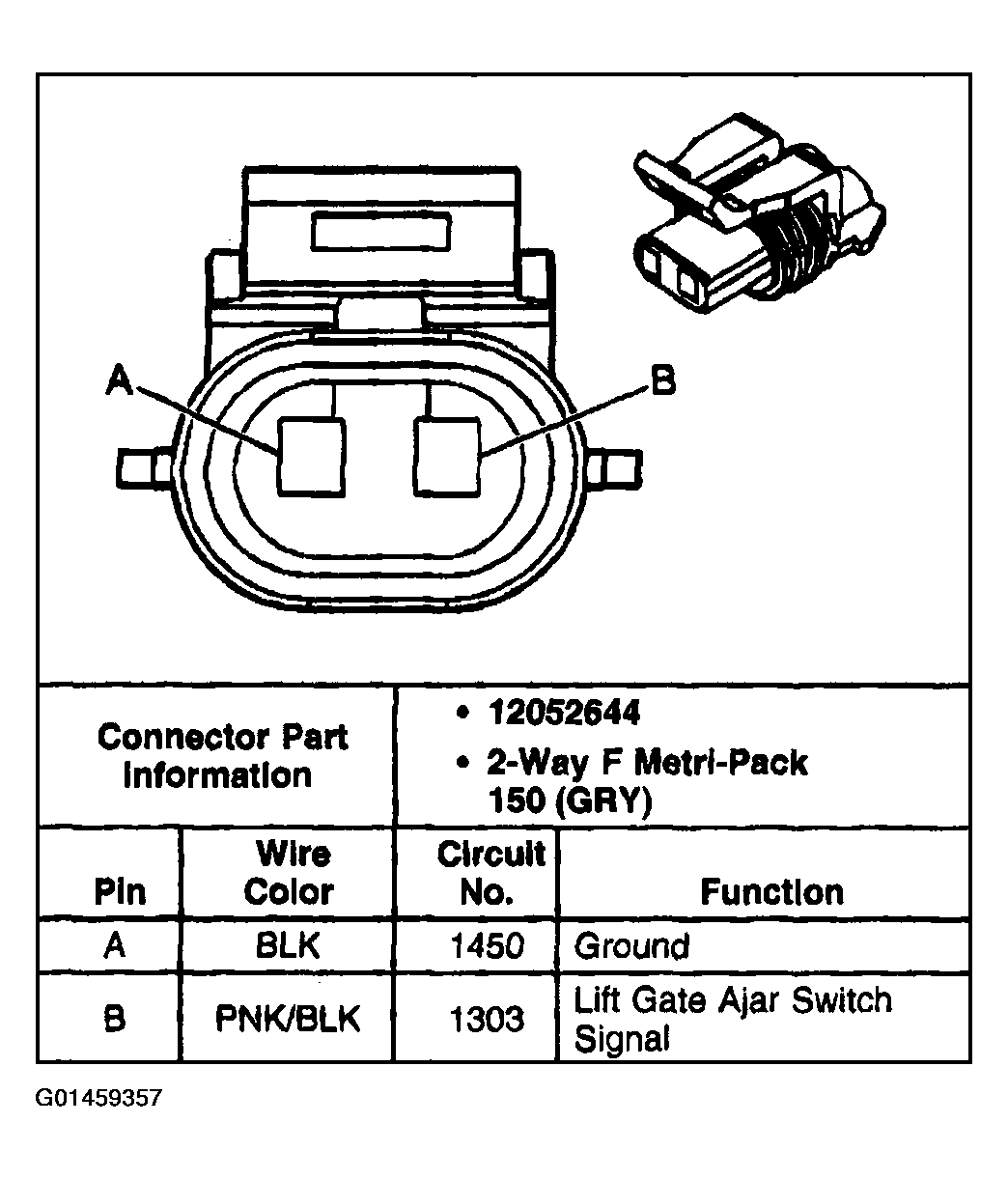

Fig 9: Identifying Lift Glass Ajar Switch Terminals

G01459357

Courtesy of GENERAL MOTORS CORP.
