Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  or DOOR SILL PLATE REPLACEMENT - REAR  .
  2. Remove hinge pillar panel.

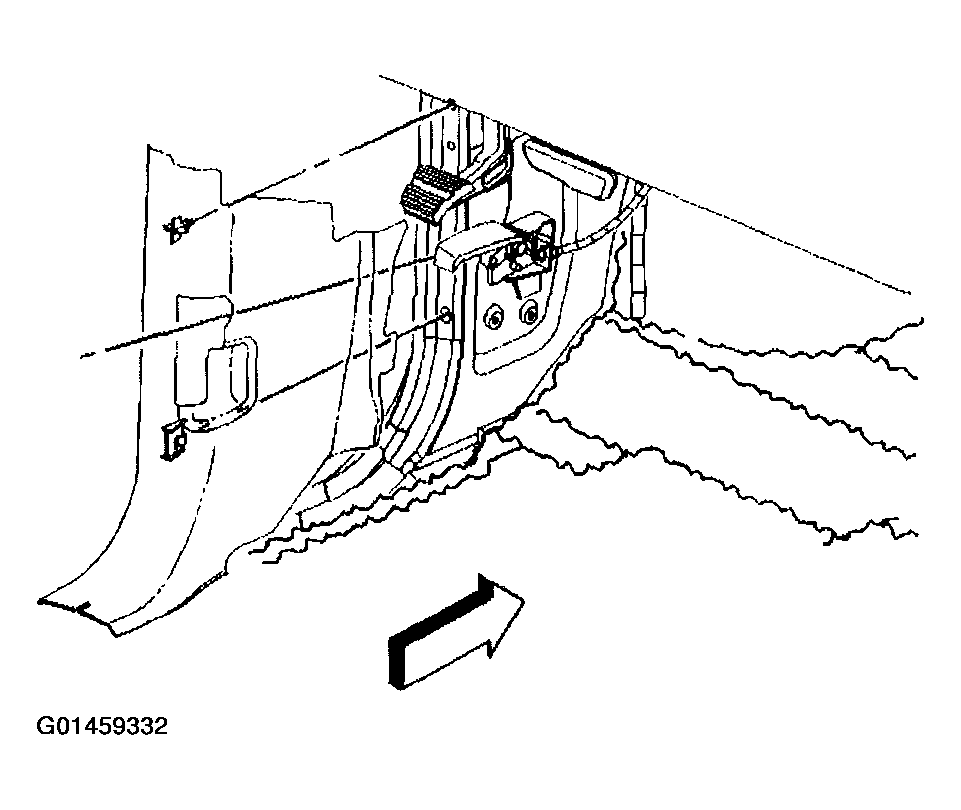

    Fig 1: Removing Hinge Pillar Panel
    G01459332Courtesy of GENERAL MOTORS CORP.
