Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: Do not disconnect the headliner wire harness from the junction block.
- Lower the front section of the headliner and suitably support. Refer to HEADLINER REPLACEMENT .
- Disconnect the electrical connector.
- Remove the rear corner moldings. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
- Remove the rear upper trim molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER (AVALANCHE/ESCALADE EXT) or GARNISH MOLDING REPLACEMENT - REAR UPPER (TAHOE/YUKON/ESCALADE/SUBURBAN) .
- Remove the rear coat hook.

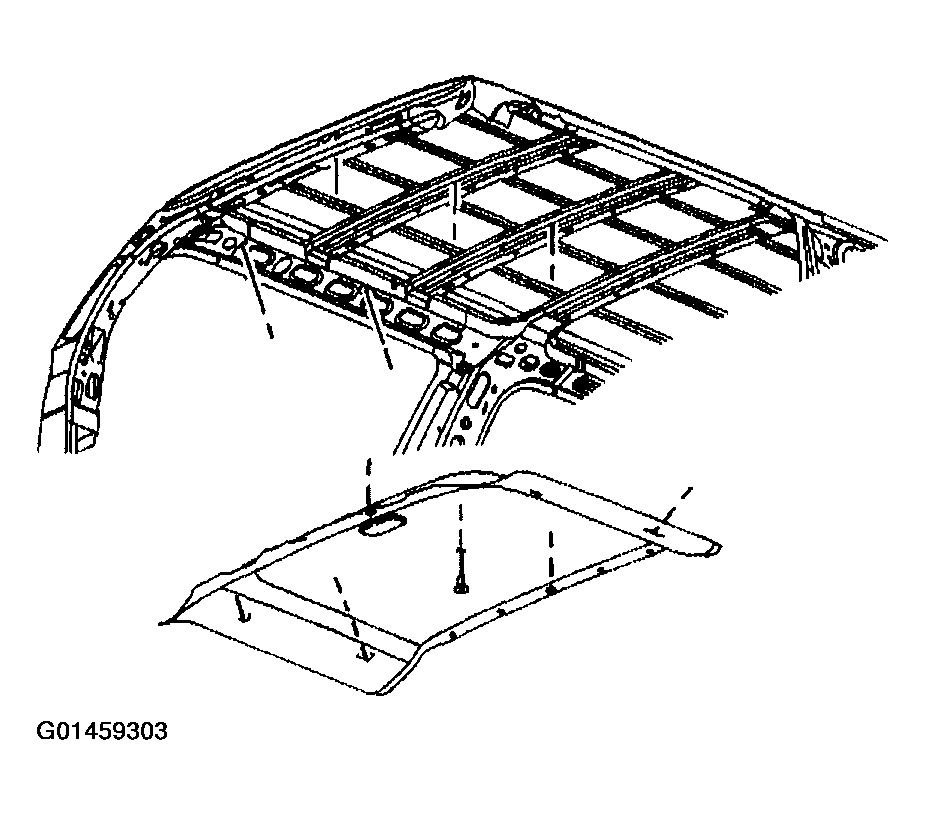

- Carefully release the headliner from the roof support Velcro® retainers.
- Remove the headliner from the vehicle.
