Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear section of the headliner to the vehicle.
  2. Secure the headliner to the roof support Velcro® retainers.
  3. Connect the electrical connector.
  4. Install the rear coat hook.
  5. Install the rear upper trim molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER (AVALANCHE/ESCALADE EXT)  or GARNISH MOLDING REPLACEMENT - REAR UPPER (TAHOE/YUKON/ESCALADE/SUBURBAN)  .
  6. Install the rear corner molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER  .
  7. Install the front section of the headliner. Refer to HEADLINER REPLACEMENT  .

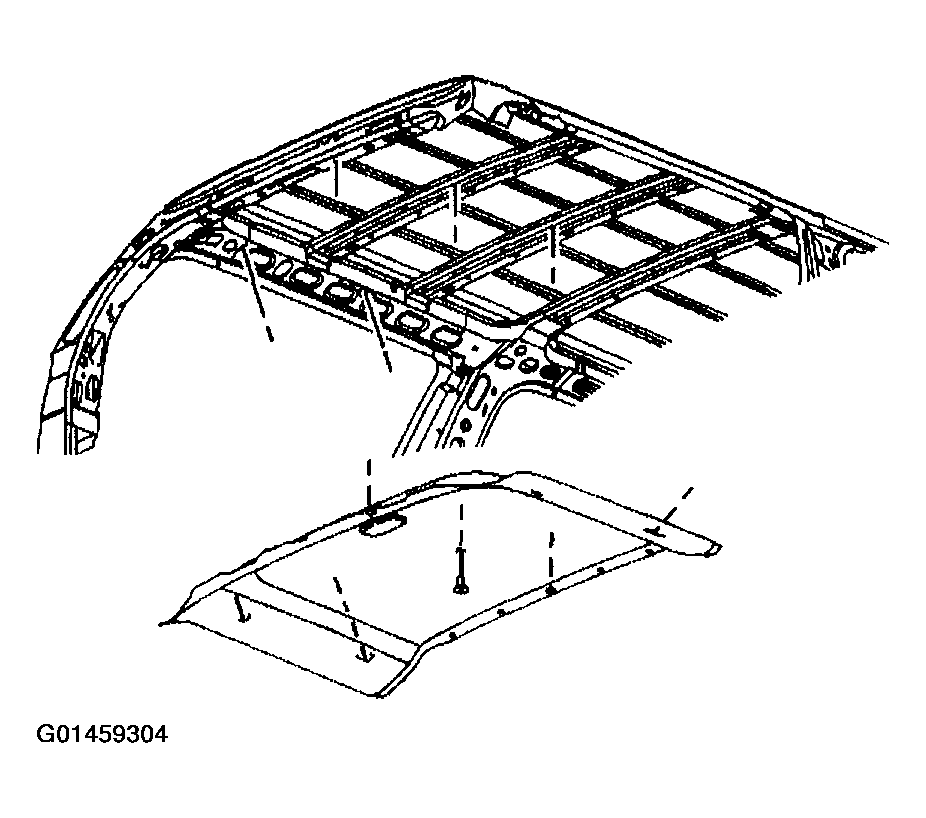

    Fig 1: Installing Vehicle Rear Headliner
    G01459304Courtesy of GENERAL MOTORS CORP.
