Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the molding straight out in order to release the retainers.
  2. Remove the windshield garnish molding.

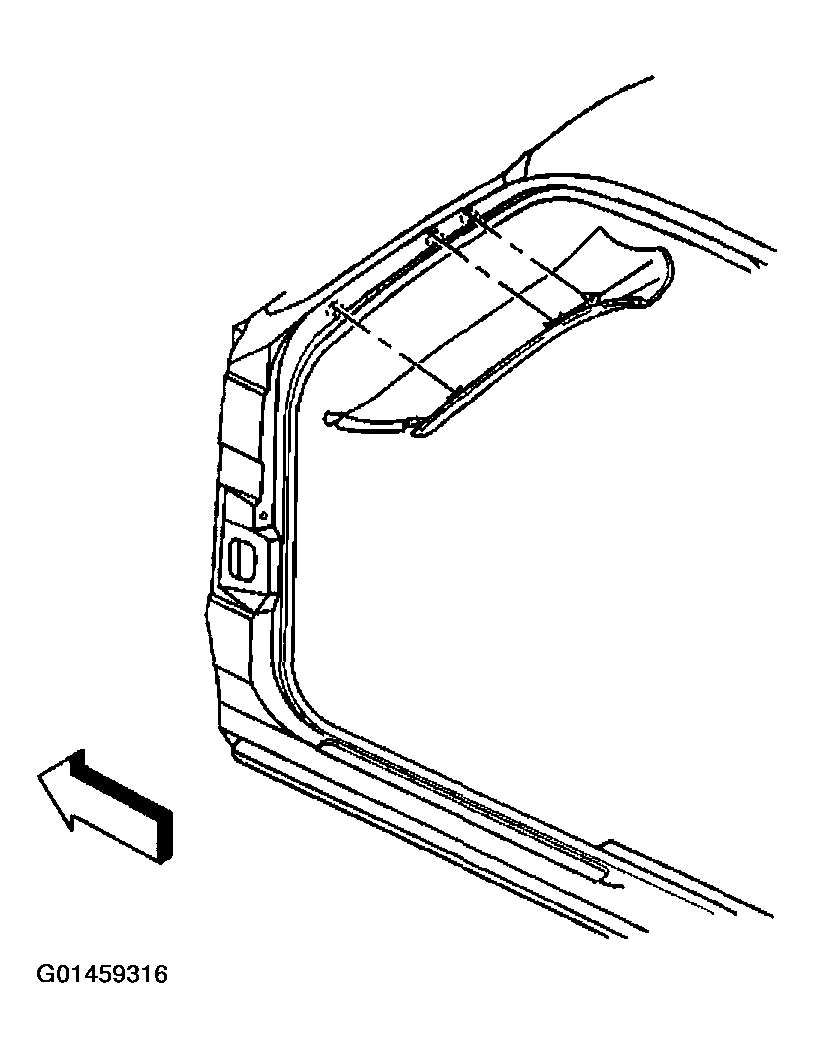

    Fig 1: Removing Windshield Garnish Molding
    G01459316Courtesy of GENERAL MOTORS CORP.
