Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the bottom of the molding is seated in the slots on the I/P.
  2. Align the molding retainers to the slots.
  3. Press the moldings straight in till fully seated.

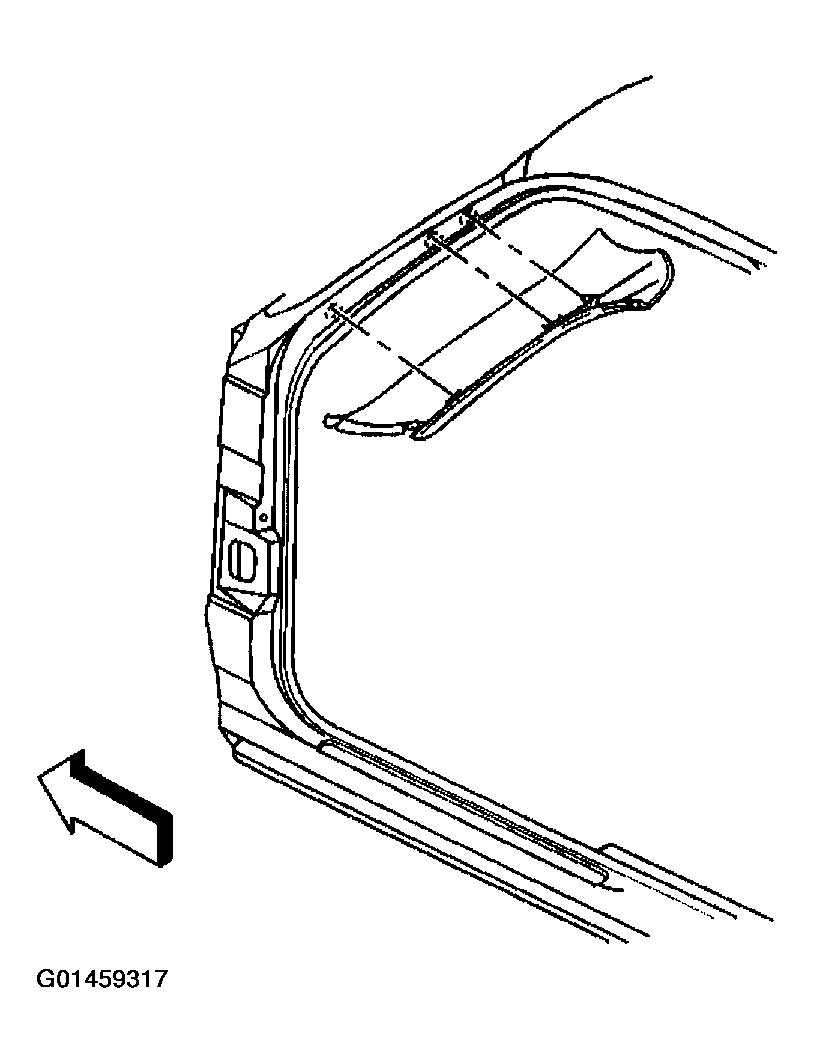

    Fig 1: Aligning Molding Retainers To Slots
    G01459317Courtesy of GENERAL MOTORS CORP.
