Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window from the vehicle.
  2. Remove the third pillar trim panels. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR UPPER  .
  3. Remove the plastic push pins (1) from the upper garnish molding.
  4. Pull down the upper garnish molding in order to disengage the retaining clips.
  5. Disconnect the electrical connector, if equipped.

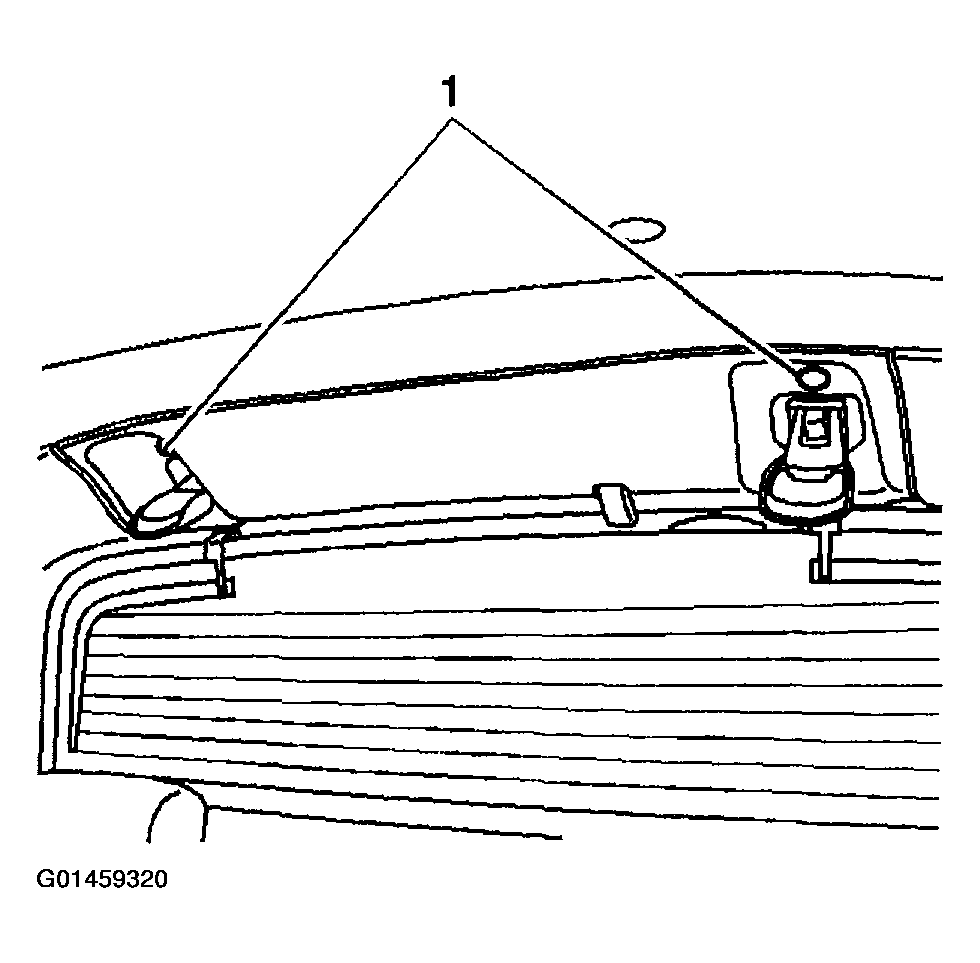

    Fig 1: Removing Plastic Push Pins
    G01459320Courtesy of GENERAL MOTORS CORP.
