Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove expanding plastic fasteners at window latch close-out.
  2. Using the J 38778, release the retainers from the retainer seats.
  3. Remove the trim panel from the liftgate.

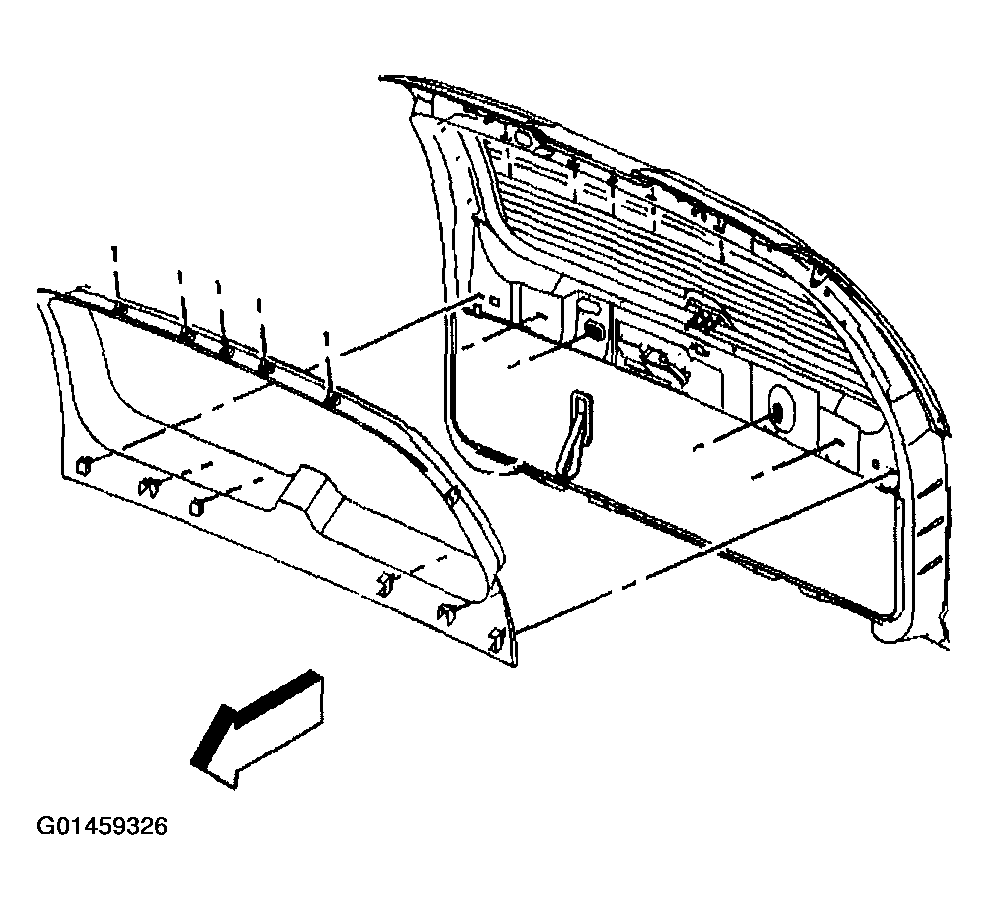

    Fig 1: Removing Trim Panel From Liftgate
    G01459326Courtesy of GENERAL MOTORS CORP.
