Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the retainers with the holes in the liftgate.
  2. Apply pressure to the seat retainers.
  3. Install the expanding plastic retainers at the window latch close-out.

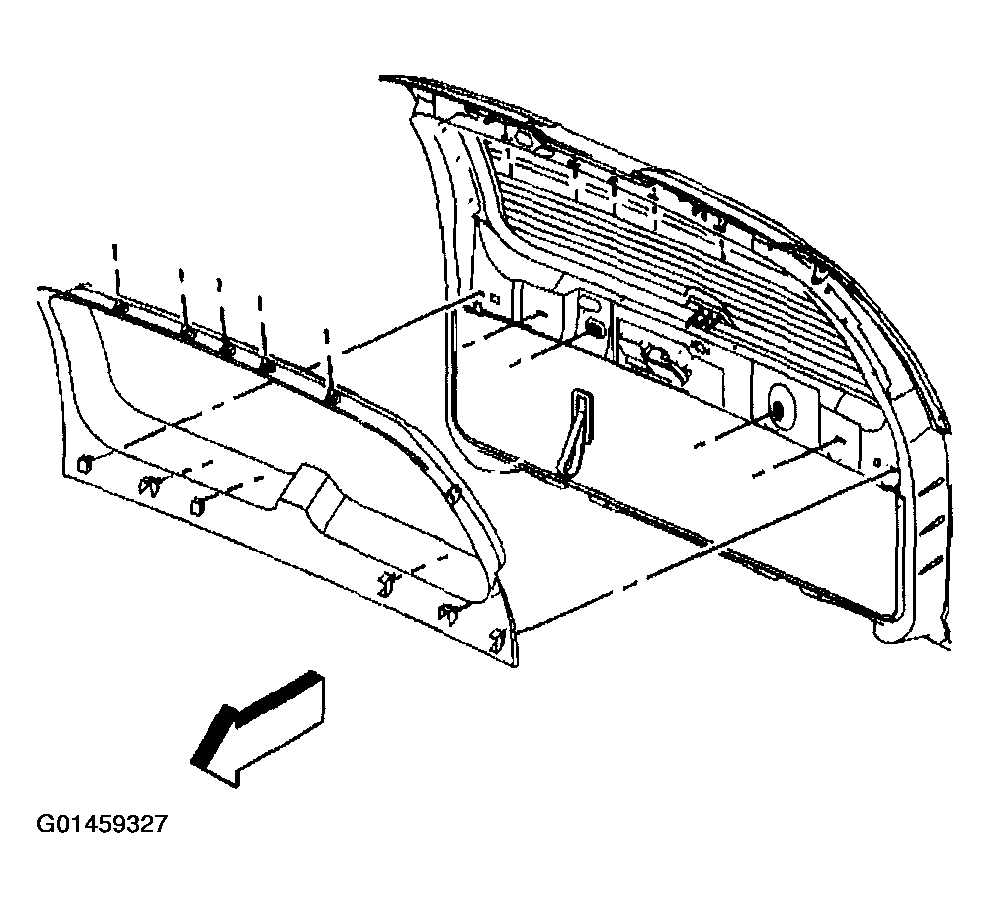

    Fig 1: Installing Trim Panel Onto Liftgate
    G01459327Courtesy of GENERAL MOTORS CORP.
