Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER (AVALANCHE/ESCALADE EXT)  or GARNISH MOLDING REPLACEMENT - REAR UPPER (TAHOE/YUKON/ESCALADE/SUBURBAN)  .
  2. Pull down on the upper corners of the garnish molding in order to disengage the retaining clips.
  3. Pull in order to disengage the remaining retaining clips.
  4. Remove the rear corner garnish molding from the vehicle.
  5. Inspect the rear corner garnish molding for broken or missing retaining clips. Replace the retaining clips as needed.

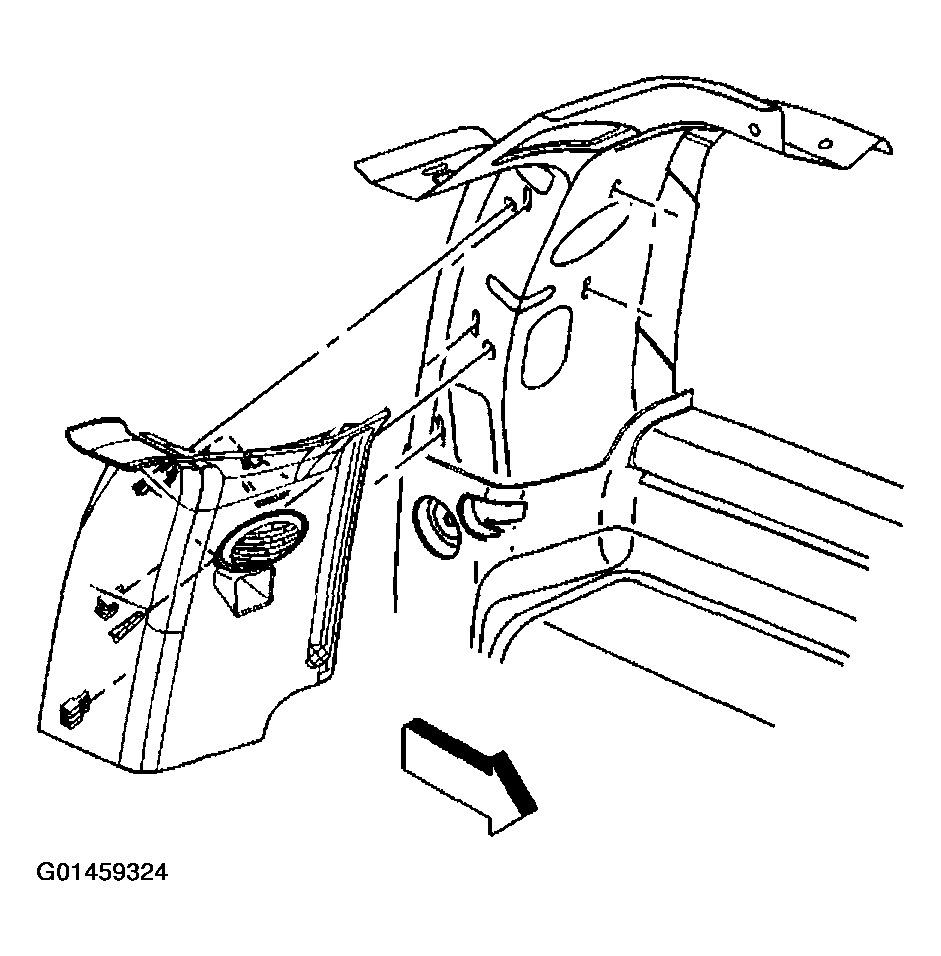

    Fig 1: Removing Rear Corner Garnish Molding
    G01459324Courtesy of GENERAL MOTORS CORP.
