Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small size flat-bladed tool in order to pry out the outer part of coat hook.
  2. Pull out the outer part of the coat hook.
    Fig 1: Pulling Out Outer Part Of Coat Hook
    G01459309Courtesy of GENERAL MOTORS CORP.
  3. Push down on the coat hook in order to release the tab from the headliner.
  4. Remove the coat hook from the headliner.

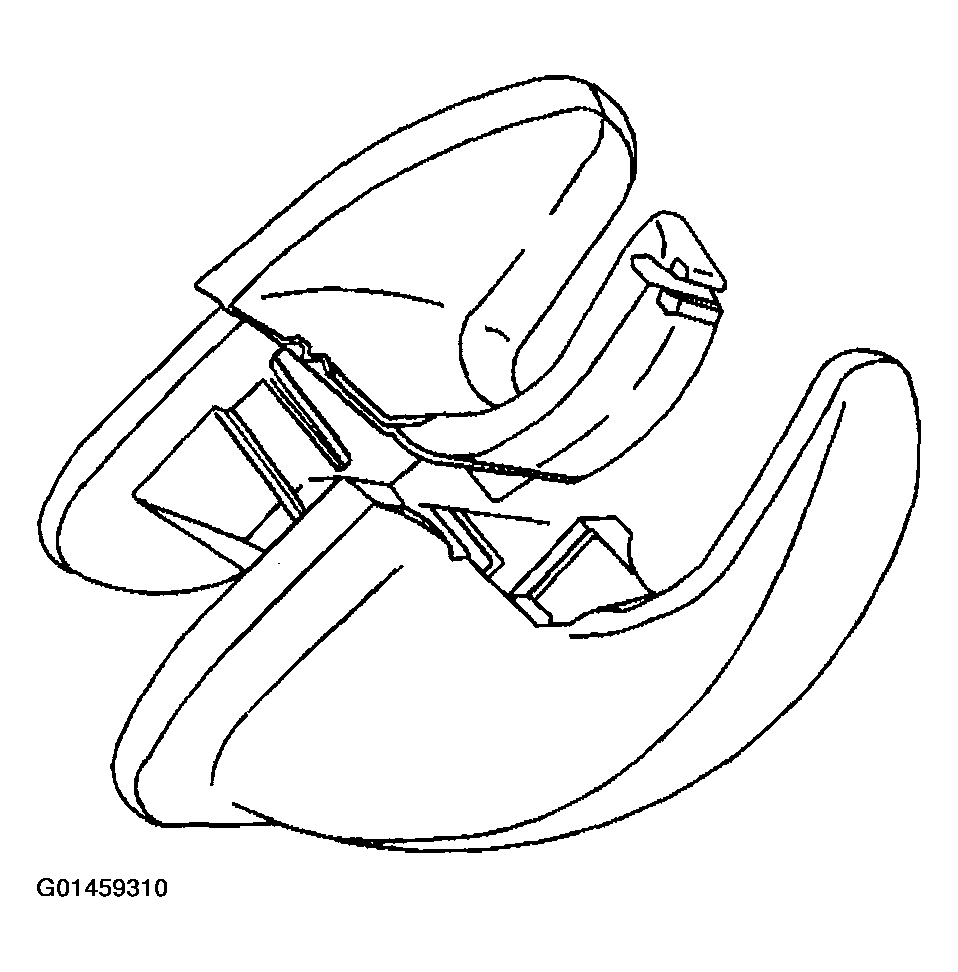

    Fig 2: Removing Coat Hook From Headliner
    G01459310Courtesy of GENERAL MOTORS CORP.
