Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  2. Remove the rear seats. Refer to SEAT REPLACEMENT - REAR NO. 1 (60/40 SPLIT) or SEAT REPLACEMENT - REAR NO. 1 (BUCKET) in Seats.
  3. Remove the front center seat. Refer to SEAT REPLACEMENT - CENTER in Seats.
  4. Remove the floor center console, if equipped. Refer to CONSOLE REPLACEMENT (WITH CONSOLE MOUNTING BRACKET) or CONSOLE REPLACEMENT (W/O CONSOLE MOUNTING BRACKET) in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  5. Remove the lower bracket from the I/P to the floor to allow carpet removal.
  6. Remove the door sill trim plates. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  and DOOR SILL PLATE REPLACEMENT - REAR  .
  7. Remove the hinge pillar trim panels from both sides. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR  .
  8. Remove the garnish molding center pillar trim. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR  .
  9. Remove the carpet.

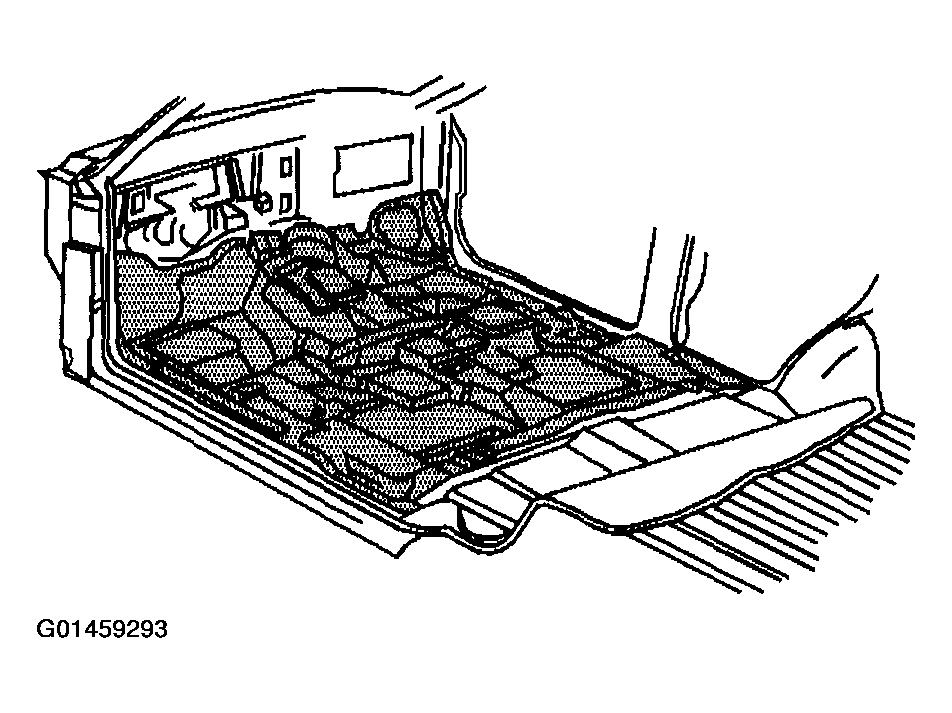

    Fig 1: Removing Vehicle Front Carpet
    G01459293Courtesy of GENERAL MOTORS CORP.
