Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center pillar trim panel. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR  .
  2. Remove the assist handle retraining screws.
  3. Remove the assist handle from the vehicle.

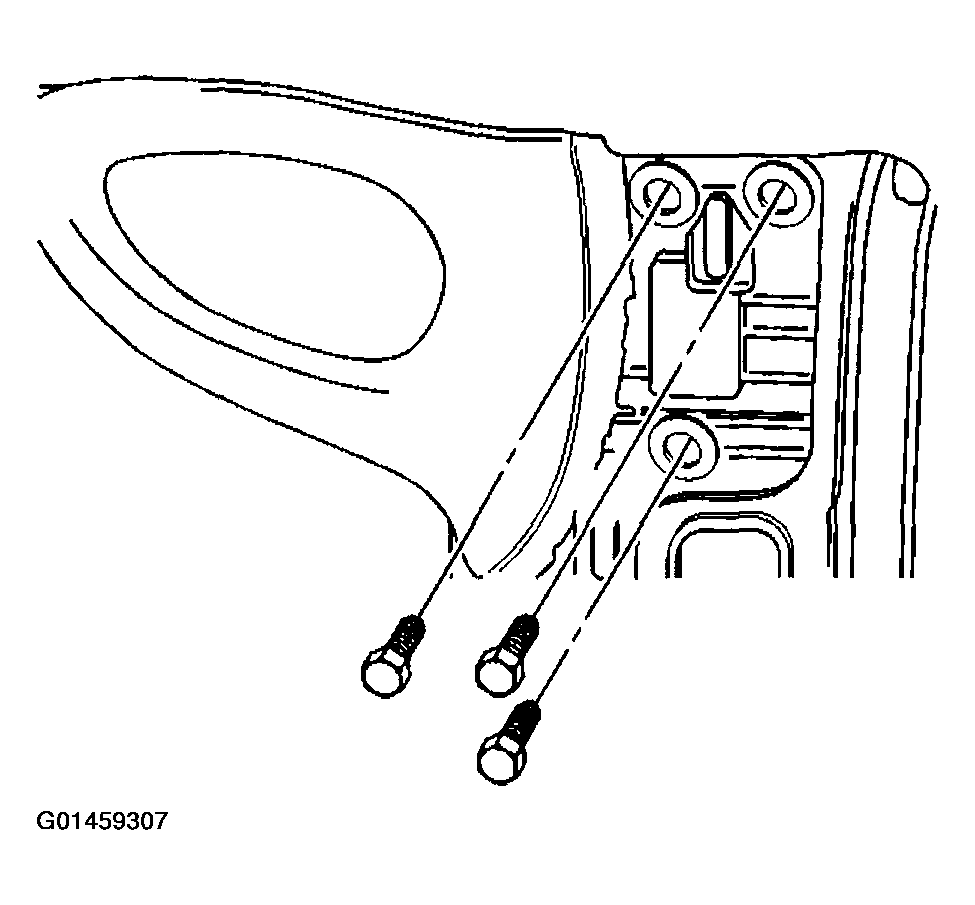

    Fig 1: Removing Assist Handle Retraining Screws
    G01459307Courtesy of GENERAL MOTORS CORP.
