Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the assist handle to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the assist handle screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  3. Install the center pillar trim panel. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR  .

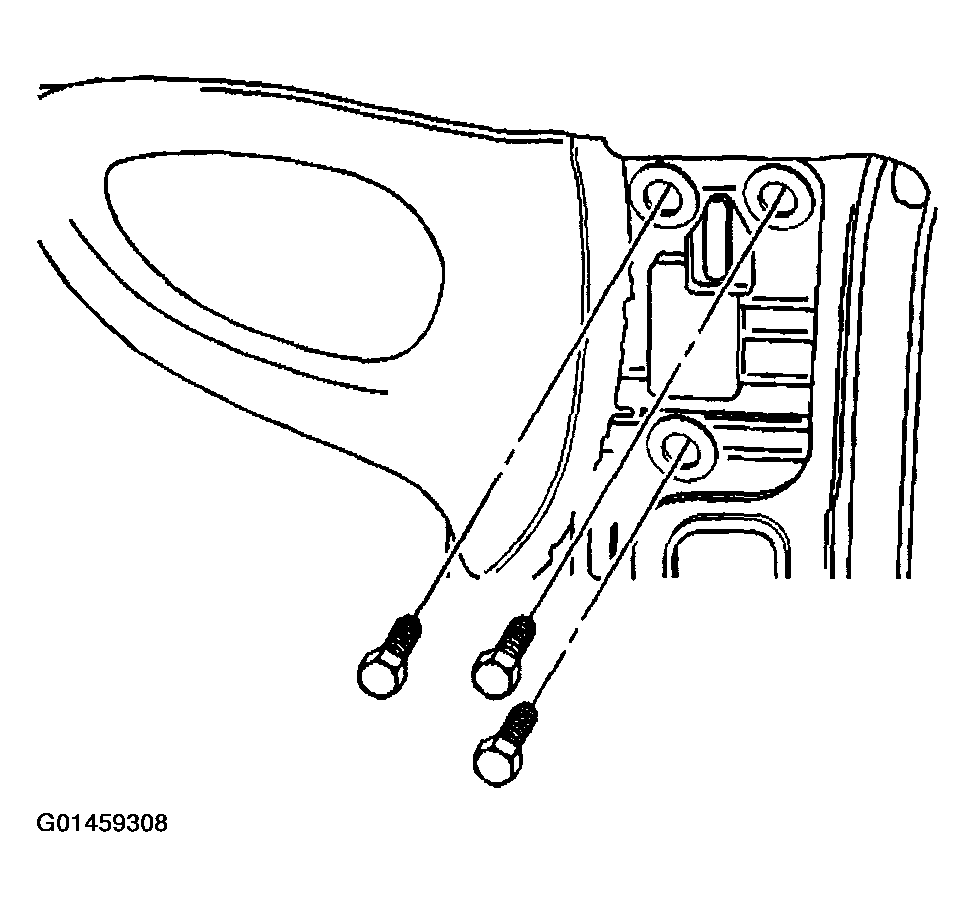

    Fig 1: Installing Assist Handle Retraining Screws
    G01459308Courtesy of GENERAL MOTORS CORP.
