Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers (2) from the wheelhouse panel.

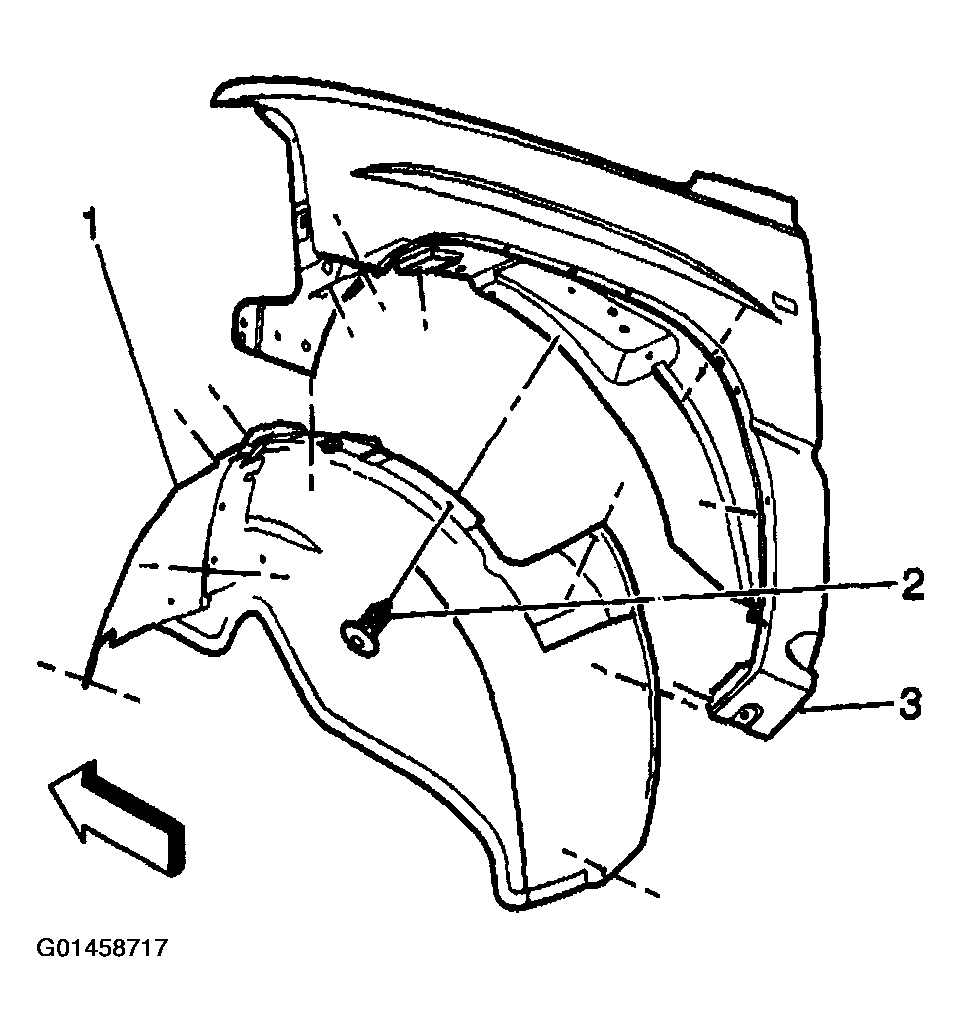

    Fig 1: Removing Procedure Wheelhouse Panel
    G01458717Courtesy of GENERAL MOTORS CORP.
  2. Remove the retainers (2) from the front fascia (1). If applicable.
  3. Remove the top clips retaining the harness to the top of the wheelhouse panel.
  4. Remove the wheelhouse panel from the wheelhouse.

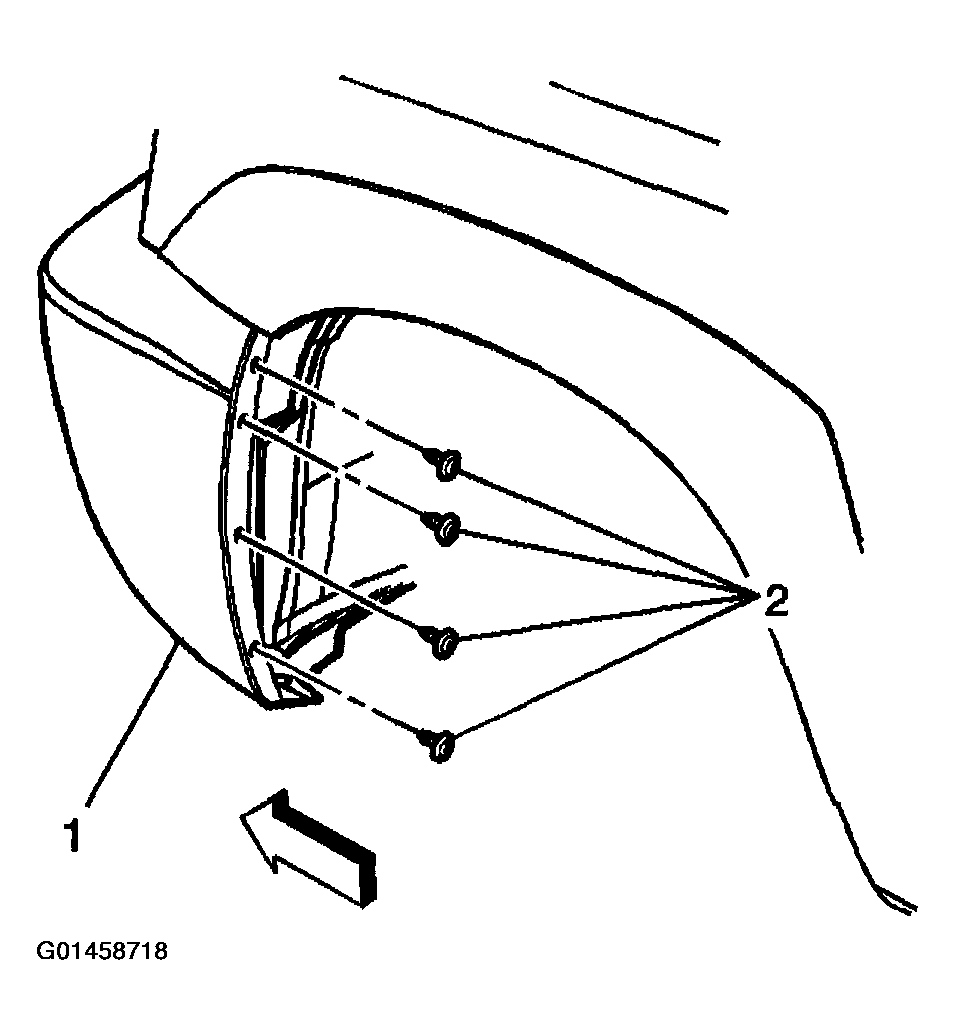

    Fig 2: Removing Retainers From Front Fascia
    G01458718Courtesy of GENERAL MOTORS CORP.
