Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamps. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (EXCEPT AVALANCHE) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AVALANCHE) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (CADILLAC) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (HID) in Lighting Systems.

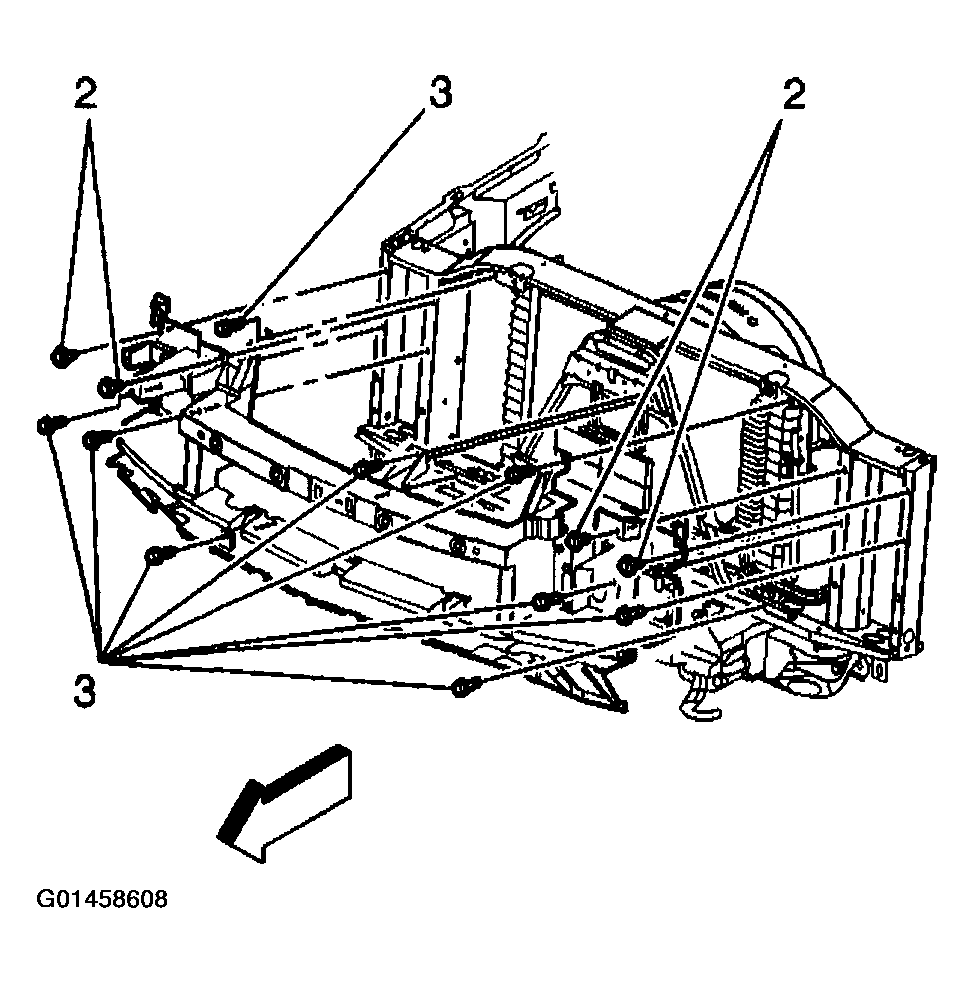

    Fig 1: Removing Procedure Of Support Radiator Grille
    G01458608Courtesy of GENERAL MOTORS CORP.
  2. Remove the park/turn signal lamps. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (EXCEPT AVALANCHE) or PARK/TURN SIGNAL LAMP REPLACEMENT (AVALANCHE) in LIGHTING SYSTEMS
  3. Remove the grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in EXTERIOR TRIM
  4. Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (AVALANCHE) or FASCIA REPLACEMENT - FRONT BUMPER (Z-71) in BUMPER SYSTEM .
  5. Remove the retaining bolts (3) from the grille reinforcement.
  6. Remove the retaining screws (2) from the grille reinforcement.
  7. Remove the reinforcement from the vehicle.
