Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Align the slot in the rear hood seal with the cowl pinch-weld flange and press into place.

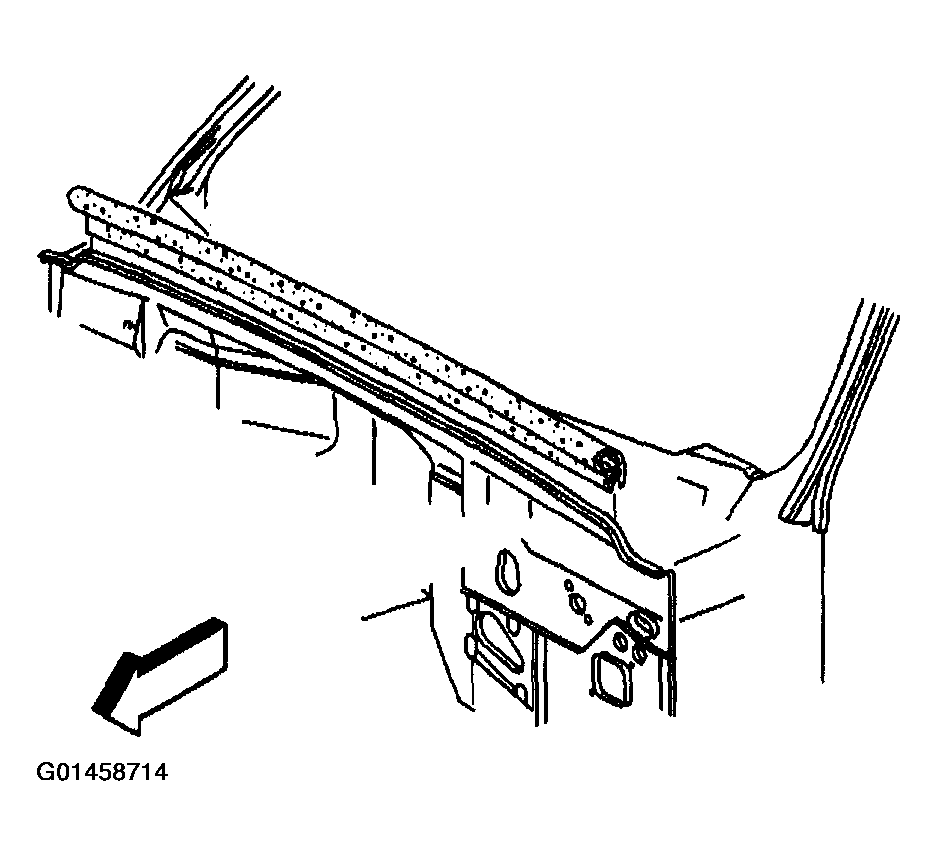

Fig 1: Rear Hood Seal Installing Procedure
G01458714Courtesy of GENERAL MOTORS CORP.
