Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement in Engine Controls-4.8L, 5.3L and 6.0L
  3. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls-4.8L, 5.3L and 6.0L.
  4. Remove the retainers (1) from the air cleaner mounting bracket (2).
  5. Remove the air cleaner mounting bracket (2) from the vehicle.
  6. Remove the retainers (3) from the air cleaner support lower bracket (4).
  7. Remove the lower air cleaner support bracket from the vehicle.

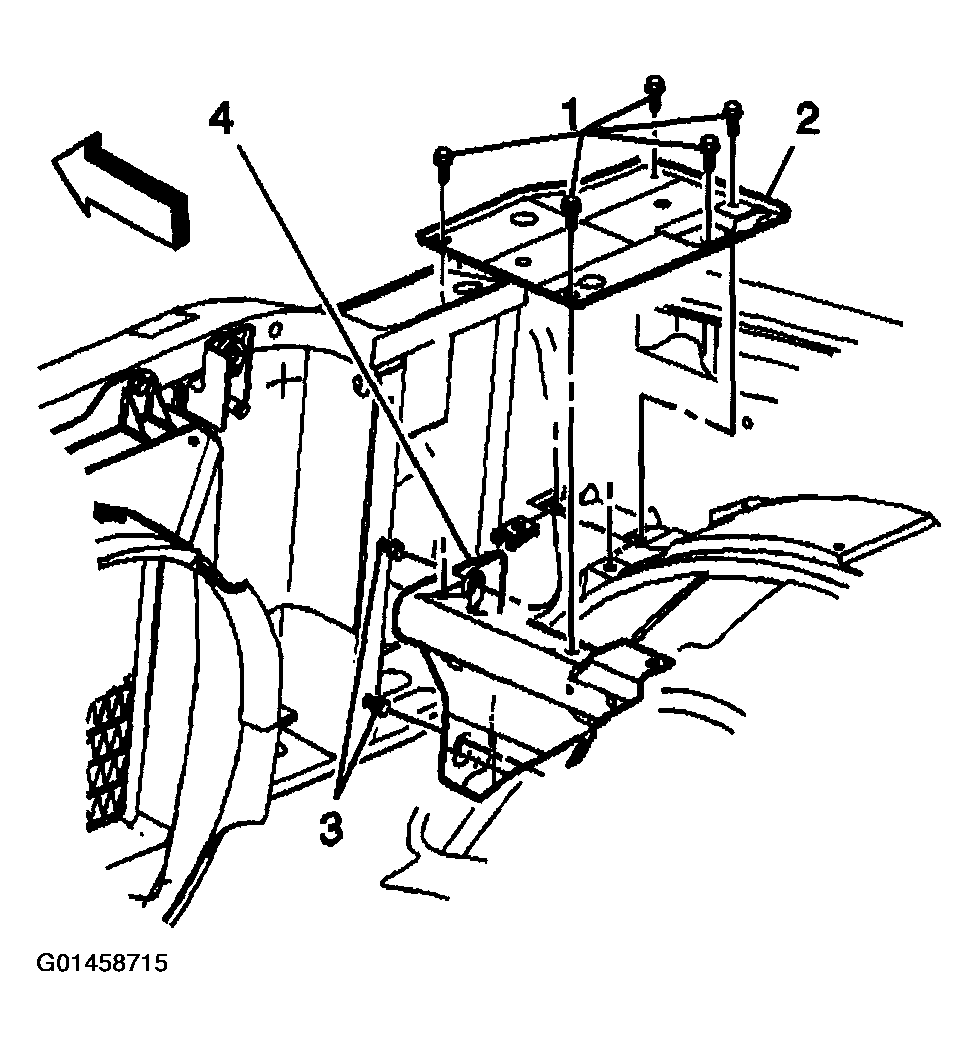

    Fig 1: Mounting Bracket Air Cleaner Removing Procedure
    G01458715Courtesy of GENERAL MOTORS CORP.
