Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower support bracket (4) to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the lower support bracket retainers (3).

    Tighten

    1. Tighten the retainer to 9 N.m (80 lb in).

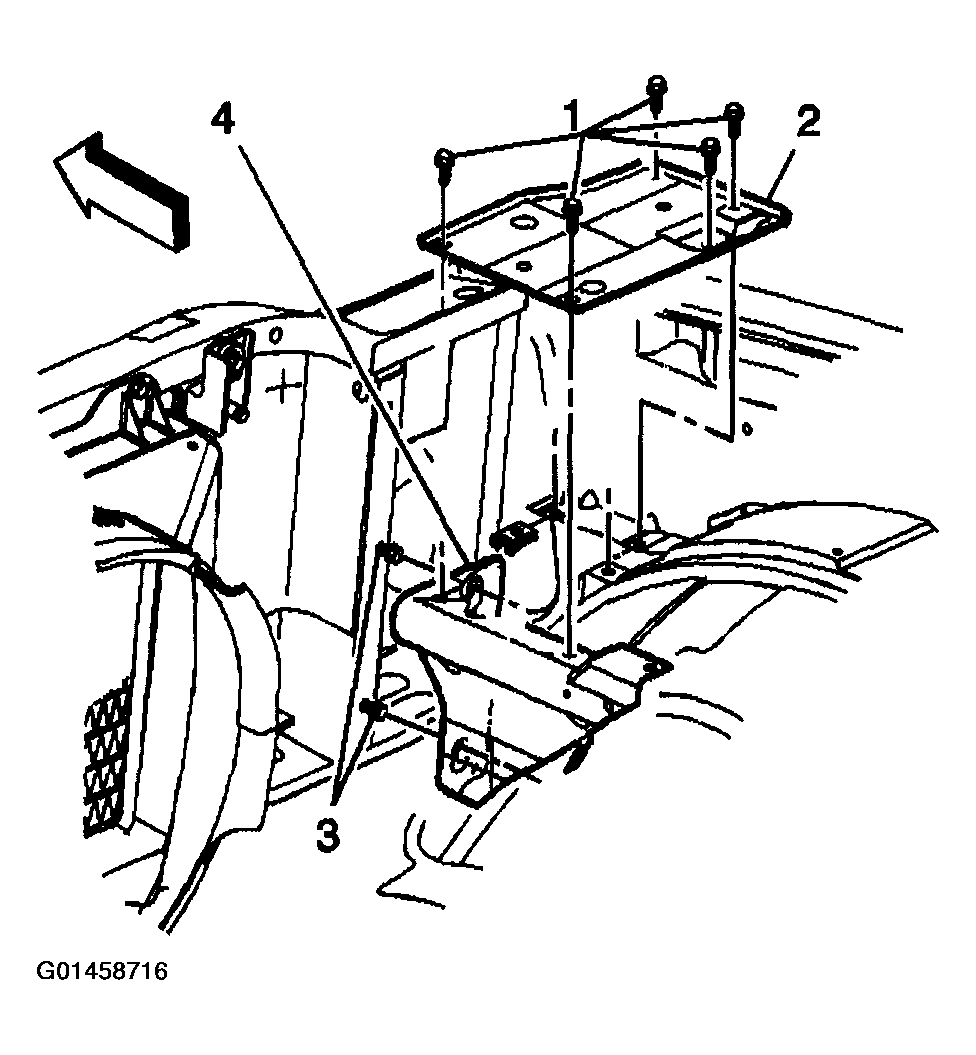

    Fig 1: Installing Mounting Bracket Air Cleaner
    G01458716Courtesy of GENERAL MOTORS CORP.
  3. Install the air cleaner mounting bracket (2) to the vehicle.
  4. Install the air cleaner mounting bracket retainers (1).

    Tighten

    1. Tighten the retainers to 9 N.m (80 lb in).
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls-4.8L, 5.3L and 6.0L.
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement in Engine Controls-4.8L, 5.3L and 6.0L.
  7. Close the hood.
