Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Raise and support the front of the hood (1)
  2. Remove the bolts (7) holding the hood link assembly to the hood hinge.
  3. Remove the bolts (5) holding the hood link assembly to the fender.
  4. Remove the hood link assembly from the vehicle.

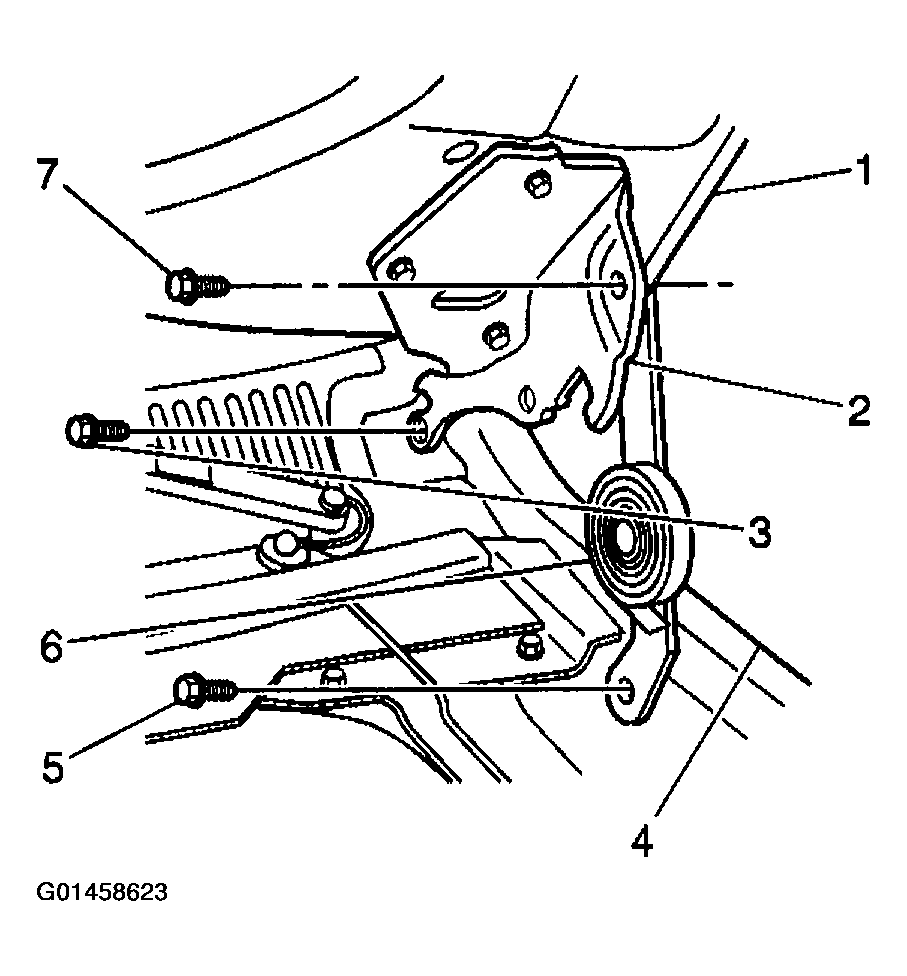

    Fig 1: Removing hood link assembly Bolts
    G01458623Courtesy of GENERAL MOTORS CORP.
